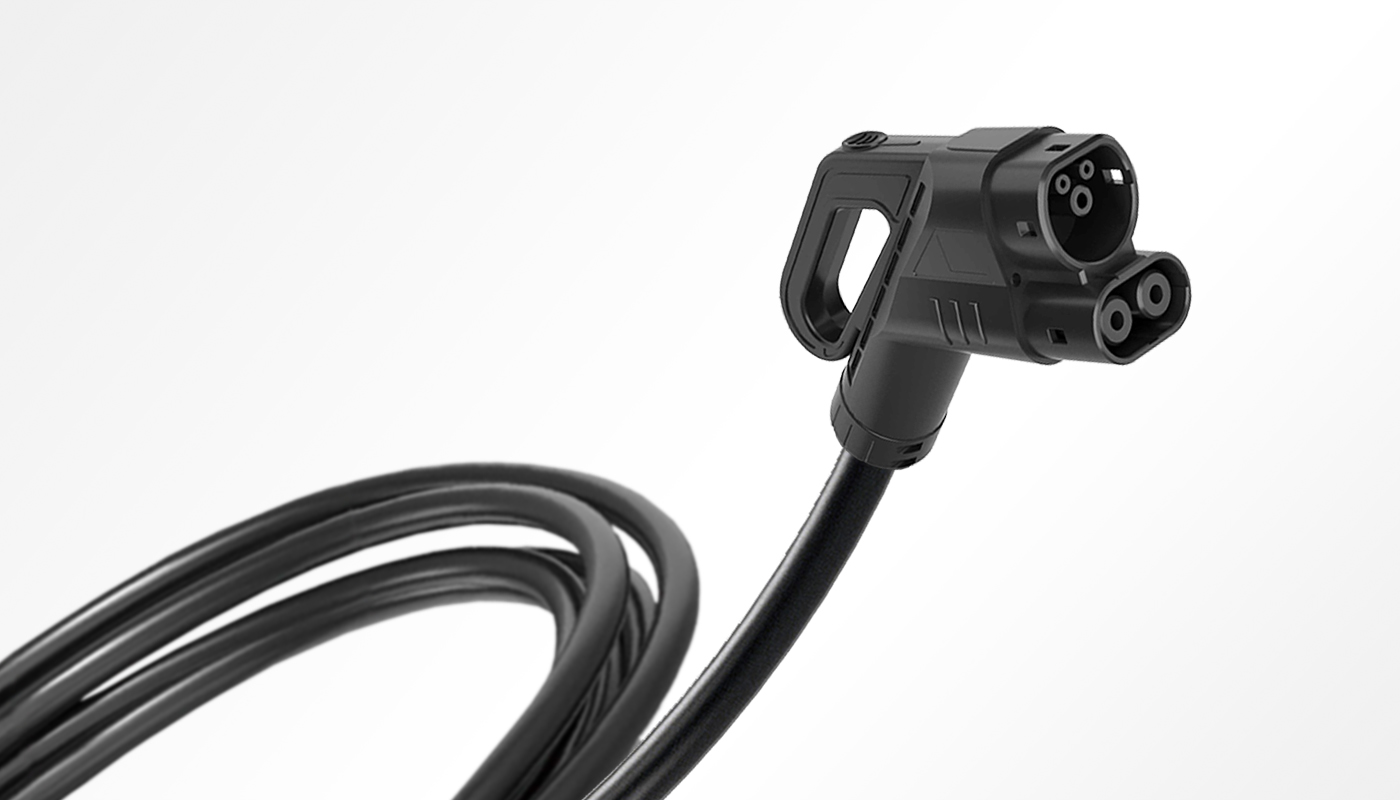

CCS2
DC EV Charging Cable
Model NO.: HJ-EV-CE-02
Rated voltage: 3 Phase / Input: AC380V / Output: DC150-1000V
Rated current: 16-150A
CCS2
DC EV Charging Cable
Model NO.: HJ-EV-CE-02
Rated voltage: 3 Phase / Input: AC380V / Output: DC150-1000V
Rated current: 16-150A
Specification
Cable specification
16A – 3×2.5mm²+Nx0.75mm²
32A – 3×6.0mm²+Nx0.75mm²
60A – 2x10mm²+1×6.0+Nx0.75mm²
80A – 2x16mm²+1×6.0+Nx0.75mm²
120A – 2x25mm²+1×6.0+Nx0.75mm²
150A – 2x35mm²+1×6.0+Nx0.75mm²
Mechanical life
No-load plug in / pull out > 10,000 times
Plug dimensions
L254 x W70 x H100 (mm)
Protection rank
IP55
Work temperature
-30°C~+50°C
Materials
EV charging cable TPU
Case material
Thermoplastic(flame retardant grade UL94-0)
Certification
CE / UKCA / RoHS
CUSTOMIZATION
Charging Cable Length
Length: 5m / 7m / 10m
Plug Customization
Every National Standard
Different Voltage and Current
Logo and Colors
Logo printing: Laser / Silk-screen
ACCESSORIES
Charging Holder
Hanging the Cable and Holding the Charger
Storage Bag
Easy to carry
waterproof storage bag keep safety
Adapter
Connect different type charging
