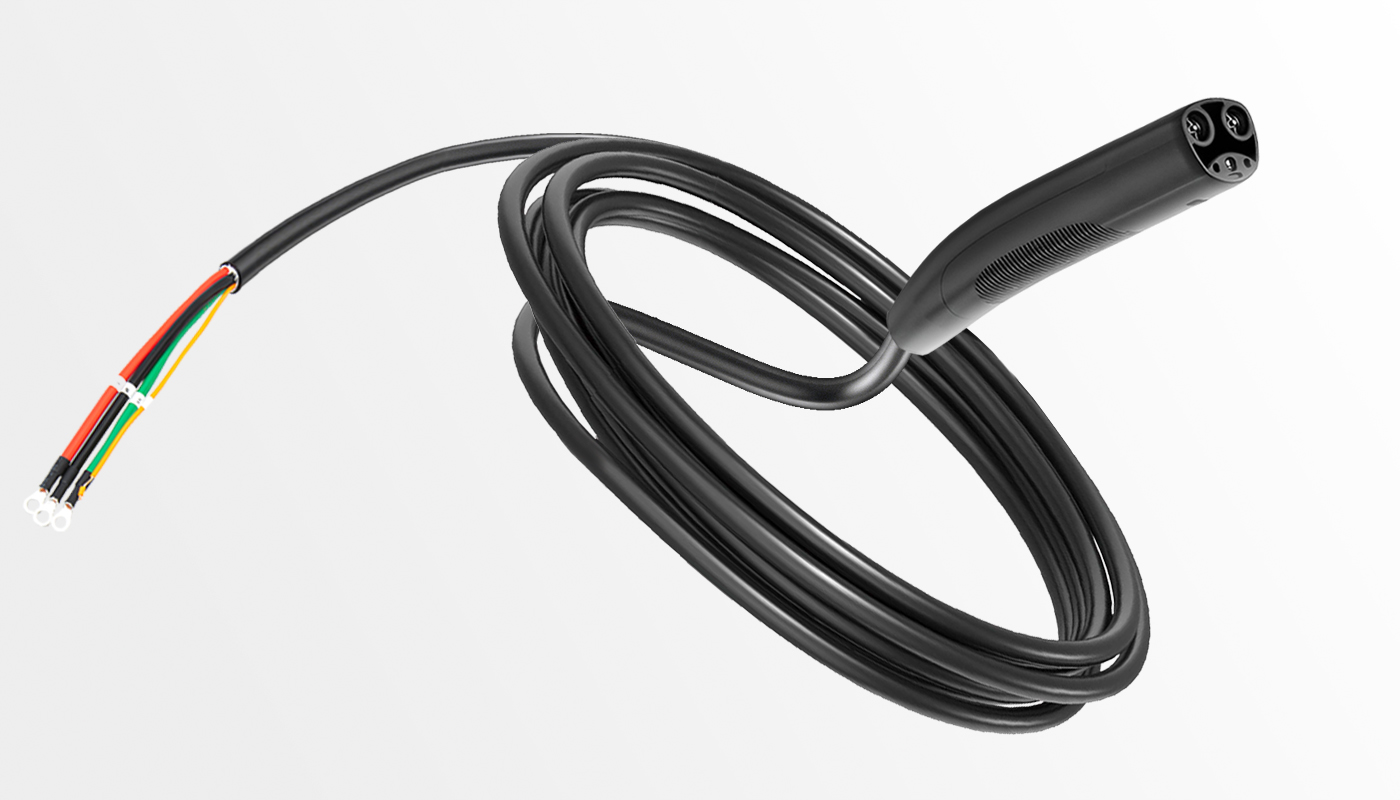

ct01 ac tesla ev charging cable main product image

TESLA NACS

AC EV Charging Cable

Model NO.: HJ-EV-CT-01

Rated voltage: AC110-240V

Rated current: 16A / 32A / 40A / 48A / 63A

product feature icon 1
Get a Quote

Specification

Tesla NACS without one-click open

HJ-EV-CT-01

Cable specification

16A – 2x12AWG+1x13AWG+3x16AWG OD=15.7
32A – 3x10AWG+3x16AWG OD=16.7
40A – 3x9AWG+3x16AWG OD=17.4
48A – 2x8AWG+1x10AWG+3x16AWG OD=20.9
63A – 2x6AWG+1x8AWG+3x16AWG OD=23.6

Tesla NACS witn one-click open

HJ-EV-CT-02

Cable specification

16A – 2x12AWG+1x13AWG+5x16AWG OD=16.7
32A – 3x10AWG+5x16AWG OD=17.7
40A – 3x9AWG+5x16AWG OD=18.4
48A – 2x8AWG+1x10AWG+5x16AWG OD=21.9
63A – 2x6AWG+1x8AWG+5x16AWG OD=23.8

Mechanical life

No-load plug in / pull out > 10,000 times

Plug dimensions

L230 x W65 x H64 (mm)

Protection rank

IP55

Work temperature

-30°C~+50°C

Materials

TPE jacket for lifetime protection; T2 material for L / N terminal

Case material

Thermoplastic(flame retardant grade UL94-0)

Certification

CE / UKCA / RoHS

CUSTOMIZATION

customizable charging cable length illustration

Charging Cable Length



Length: 5m / 7m / 10m



customizable plug types for different countries illustration

Plug Customization

Every National Standard

Different Voltage and Current



customizable logo printing for ev charging cable ac tesla ct01 illustration

Logo and Colors



Logo printing: Laser / Silk-screen



ACCESSORIES

Charging Holder

Hanging the Cable and Holding the Charger



Storage Bag

Easy to carry

waterproof storage bag keep safety



Adapter



Connect different type charging
