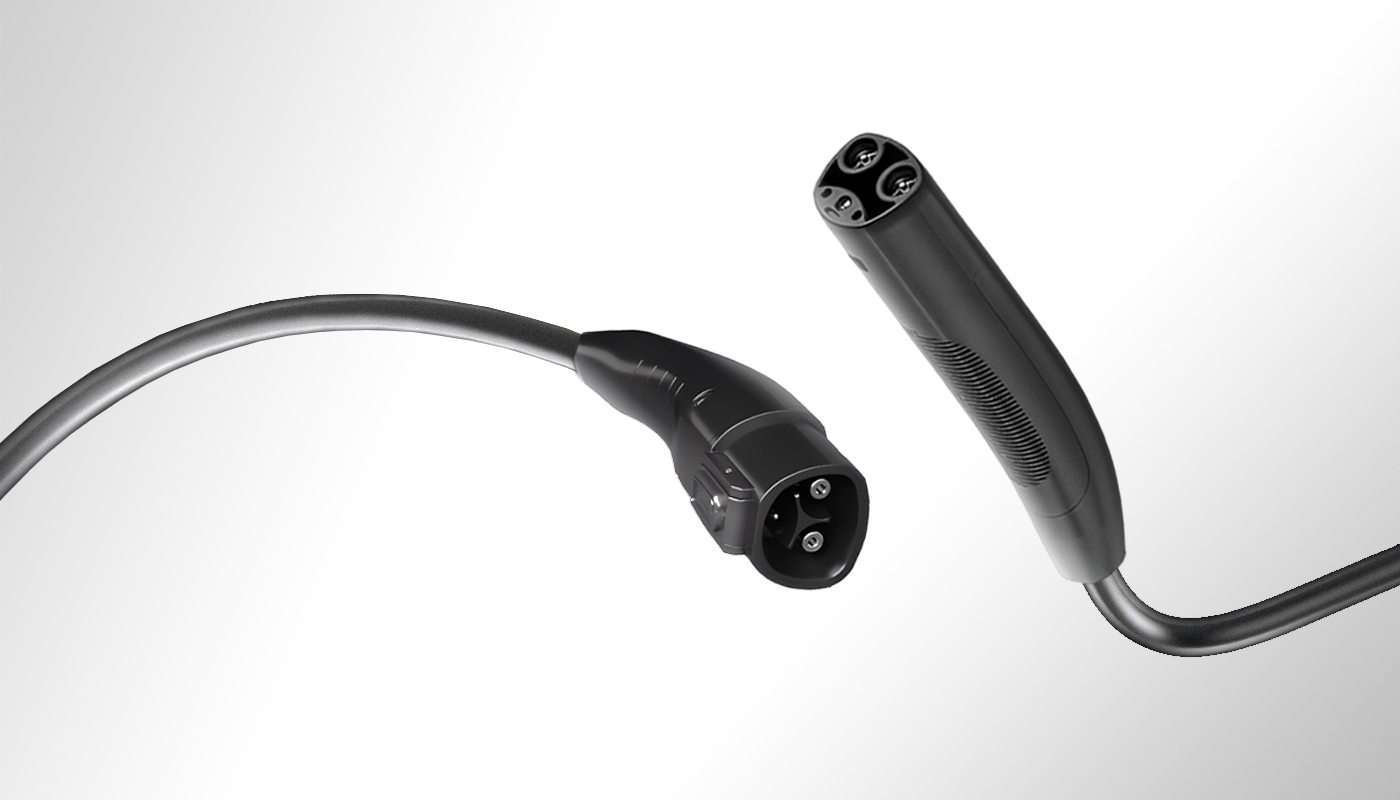

TESLA to TESLA
AC EV Charging Cable
Extension Cable
Model NO.: HJ-EV-XCT-01
Rated voltage: AC110-240V
Rated current: 16A / 32A / 40A / 48A / 80A
Rated power: 3.5KW / 7KW / 9KW / 11KW / 22KW
TESLA to TESLA
AC EV Charging Cable
Extension Cable
Model NO.: HJ-EV-XCT-01
Rated voltage: AC110-240V
Rated current: 16A / 32A / 40A / 48A / 80A
Rated power: 3.5KW / 7KW / 9KW / 11KW / 22KW
Specification
Cable specification
16A – 3.5KW – 3x12AWG+2x18AWG
32A – 7KW – 3x10AWG+2x18AWG
40A – 9KW – 2x9AWG+1x10AWG+2x18AWG
48A – 11KW – 2x8AWG+1x10AWG+2x18AWG
80A – 22KW – 2x5AWG+1x6AWG+2x18AWG
Mechanical life
No-load plug in / pull out > 10,000 times
Plug dimensions
L220 x W65 x H64 (mm)
Protection rank
IP55
Work temperature
-30°C~+50°C
Materials
EV charging cable TPE
Case material
Thermoplastic(flame retardant grade UL94-0)
Certification
CE / UKCA / RoHS
CUSTOMIZATION
Charging Cable Length
Length: 5m / 7m / 10m
Plug Customization
Every National Standard
Different Voltage and Current
Logo and Colors
Color Customization
Logo printing: Laser / Silk-screen
ACCESSORIES
Charging Holder
Hanging the Cable and Holding the Charger
Storage Bag
Easy to carry
waterproof storage bag keep safety
Adapter
Connect different type charging
