TYPE2
AC EV Charging Cable
Model NO.: HJ-EV-CE01
Rated voltage: AC250-480V
Rated current: 16A / 32A(1Phase / 3Phase)
Rated power: 3.5KW / 7KW / 11KW / 22KW
TYPE2
AC EV Charging Cable
Model NO.: HJ-EV-CE01
Rated voltage: AC250-480V
Rated current: 16A / 32A(1Phase / 3Phase)
Rated power: 3.5KW / 7KW / 11KW / 22KW
Specification
Cable specification
16A/1Phase – 3×2.5mm²+2×0.5mm²
32A/1Phase – 3×6.0mm²+2×0.5mm²
16A/3Phase – 5×2.5mm²+2×0.5mm²
32A/3Phase – 5×6.0mm²+2×0.5mm²
Mechanical life
No-load plug in / pull out > 10,000 times
Plug dimensions
L210 x W69 x H62 (mm)
Protection rank
IP55
Work temperature
-30°C~+50°C
Materials
EV charging cable TPU
Case material
Thermoplastic(flame retardant grade UL94-0)
Certification
CE / UKCA / RoHS
CUSTOMIZATION
Charging Cable Length
Length: 5m / 7m / 10m
Plug Customization
Every National Standard
Different Voltage and Current
Logo and Colors
Logo printing: Laser / Silk-screen
ACCESSORIES
Charging Holder
Hanging the Cable and Holding the Charger
Storage Bag
Easy to carry
waterproof storage bag keep safety
Adapter
Connect different type charging
GET A QUOTE
MORE OPTIONS

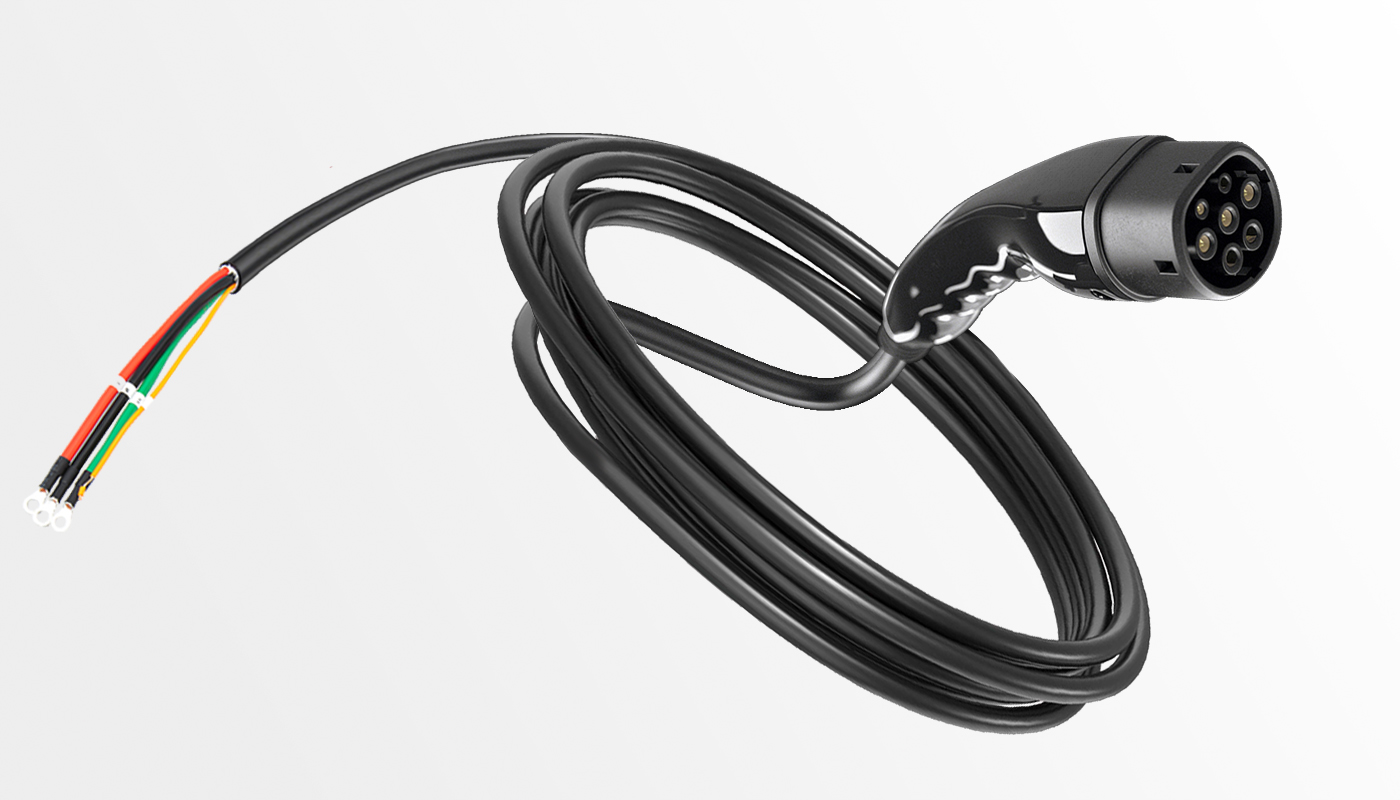

HJ-EV-CE01 | Type 2 (IEC 62196-2) AC Charging Cable with Open End
The professional component for European and UK AC charging stations. The HJ-EV-CE01 is a high-performance Type 2 cable designed for OEM integration into wallboxes and public charging pillars. Whether you are building a 7kW home charger or a 22kW commercial unit, this cable provides the reliability, flexibility, and safety certifications required for the modern EVSE market.
Engineering Focus for Station Manufacturers
1.Universal Phase Compatibility
This cable series supports both Single-Phase (up to 7.4kW) and Three-Phase (up to 22kW) power grids. This allows you to standardize your station assembly using a single, high-quality cable line that meets the power demands of any European residential or commercial installation.
2.High-Flex TPU Jacket for Harsh Climates
Standard cables can become brittle and difficult to manage in cold weather. We use a premium TPU (Thermoplastic Polyurethane) jacket that stays remarkably flexible down to -30°C. It offers superior resistance to oil, abrasion, and UV exposure—essential for maintaining the professional appearance and safety of your charging stations over time.
3.Advanced Thermal Management
Pushing 32A through three phases generates heat. Our terminals are made from high-grade copper alloy with thick silver plating. This drastically reduces contact resistance, keeping the handle cool and ensuring the long-term integrity of the electrical connection even during heavy daily use.
4.IP66 Environmental Protection
Outdoor reliability is a key factor in reducing maintenance costs. The HJ-EV-CE01 plug head is rated at IP66, providing a superior seal against high-pressure water jets and dust compared to the industry-standard IP54. It’s built for unshaded, all-weather performance.
Compliance & Quality Standards
We provide the necessary documentation to ensure your finished products pass local inspections and meet market entry requirements:
- CE Marked: Fully compliant with European safety and environmental standards.
- UKCA Certified: Meets the mandatory product marking requirements for the UK market.
- RoHS Compliant: Manufactured without hazardous substances, ensuring environmental safety and easier waste management.
Technical Specifications
Feature | Details |
Standard | IEC 62196-2 (Type 2) |
Current Rating | 16A / 32A |
Voltage Rating | 250V AC (Single Phase) / 480V AC (Three Phase) |
Termination | Open End (Tail Customizable) |
Jacket Material | High-Flex TPU |
Contact Plating | Thick Silver Plating |
Protection Rating | IP66 (Mated) |
Certifications | CE, UKCA, RoHS |
Built for Factory Integration
- Ready-to-Assemble Tail: We provide the cable with a pre-stripped tail end. We can customize the stripping length and add specific crimp terminals (ferrules, ring, or spade) to match your internal contactor or PCB layout, streamlining your assembly process.
- Impact-Resistant Build: The plug housing is molded from high-strength, flame-retardant thermoplastic. It is designed to survive the “drive-over” test and repeated drops on concrete, protecting the internal wiring from mechanical failure.
- OEM Customization: We offer laser-etched branding on the connector and custom cable lengths (e.g., 5m, 7.5m, 10m) to help you deliver a product that perfectly aligns with your brand identity.
