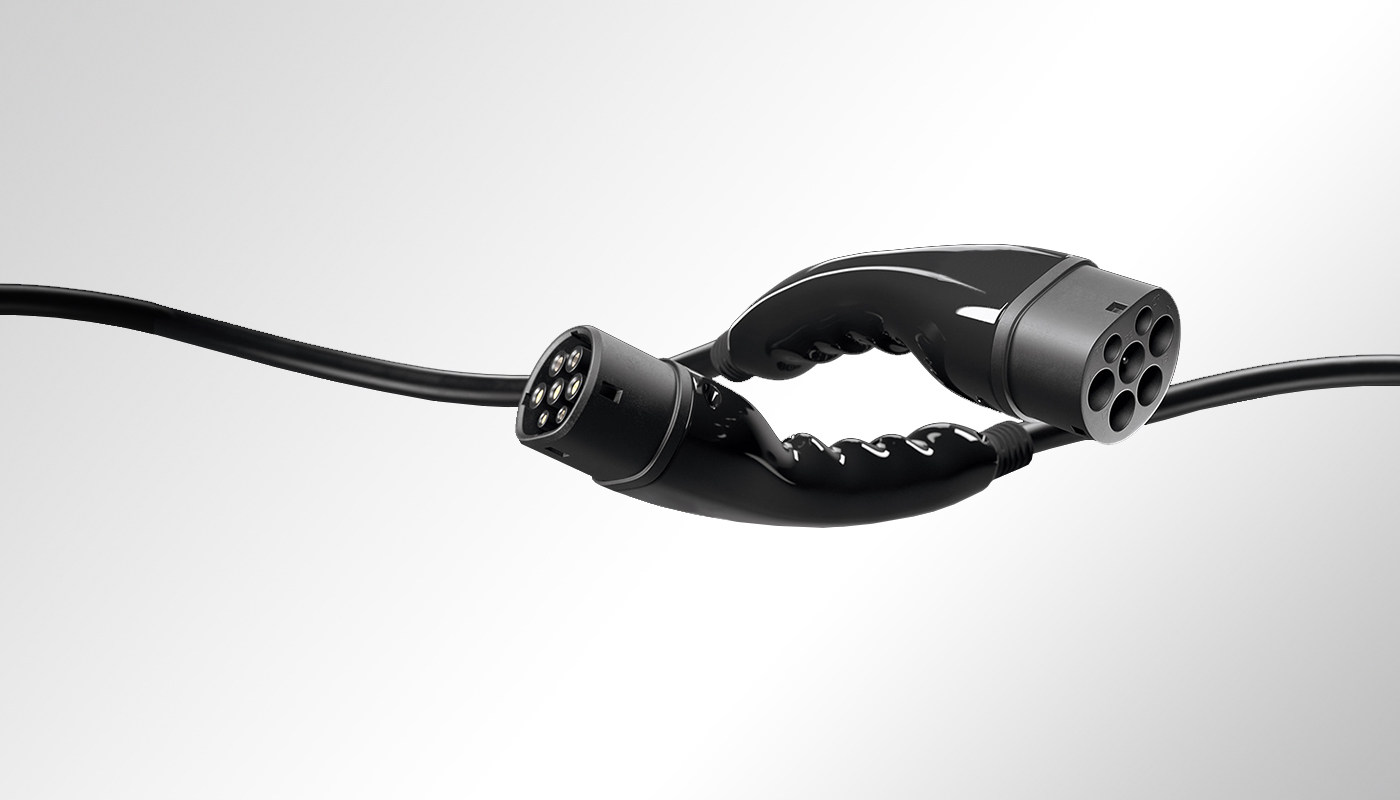

TYPE 2 to TYPE 2
AC EV Charging Cable
Extension Cable
Model NO.: HJ-EV-XCE-01
Rated voltage: AC250-480V
Rated current: 16A / 32A(1Phase / 3Phase)
Rated power: 3.5KW / 7KW / 11KW / 22KW
TYPE 2 to TYPE 2
AC EV Charging Cable
Extension Cable
Model NO.: HJ-EV-XCE-01
Rated voltage: AC250-480V
Rated current: 16A / 32A(1Phase / 3Phase)
Rated power: 3.5KW / 7KW / 11KW / 22KW
Specification
Cable specification
16A/1Phase – 3.5KW – 3×2.5mm²+2×0.5mm²
32A/1Phase – 7KW – 3×6.0mm²+2×0.5mm²
16A/3Phase – 11KW – 5×2.5mm²+2×0.5mm²
32A/3Phase – 22KW – 5×6.0mm²+2×0.5mm²
Mechanical life
No-load plug in / pull out > 10,000 times
Plug dimensions
L210 x W69 x H62 (mm)
Protection rank
IP55
Work temperature
-30°C~+50°C
Materials
EV charging cable TPU
Case material
Thermoplastic(flame retardant grade UL94-0)
Certification
CE / UKCA / RoHS
CUSTOMIZATION
Charging Cable Length
Length: 5m / 7m / 10m
Plug Customization
Every National Standard
Different Voltage and Current
Logo and Colors
Logo printing: Laser / Silk-screen
ACCESSORIES
Charging Holder
Hanging the Cable and Holding the Charger
Storage Bag
Easy to carry
waterproof storage bag keep safety
Adapter
Connect different type charging
