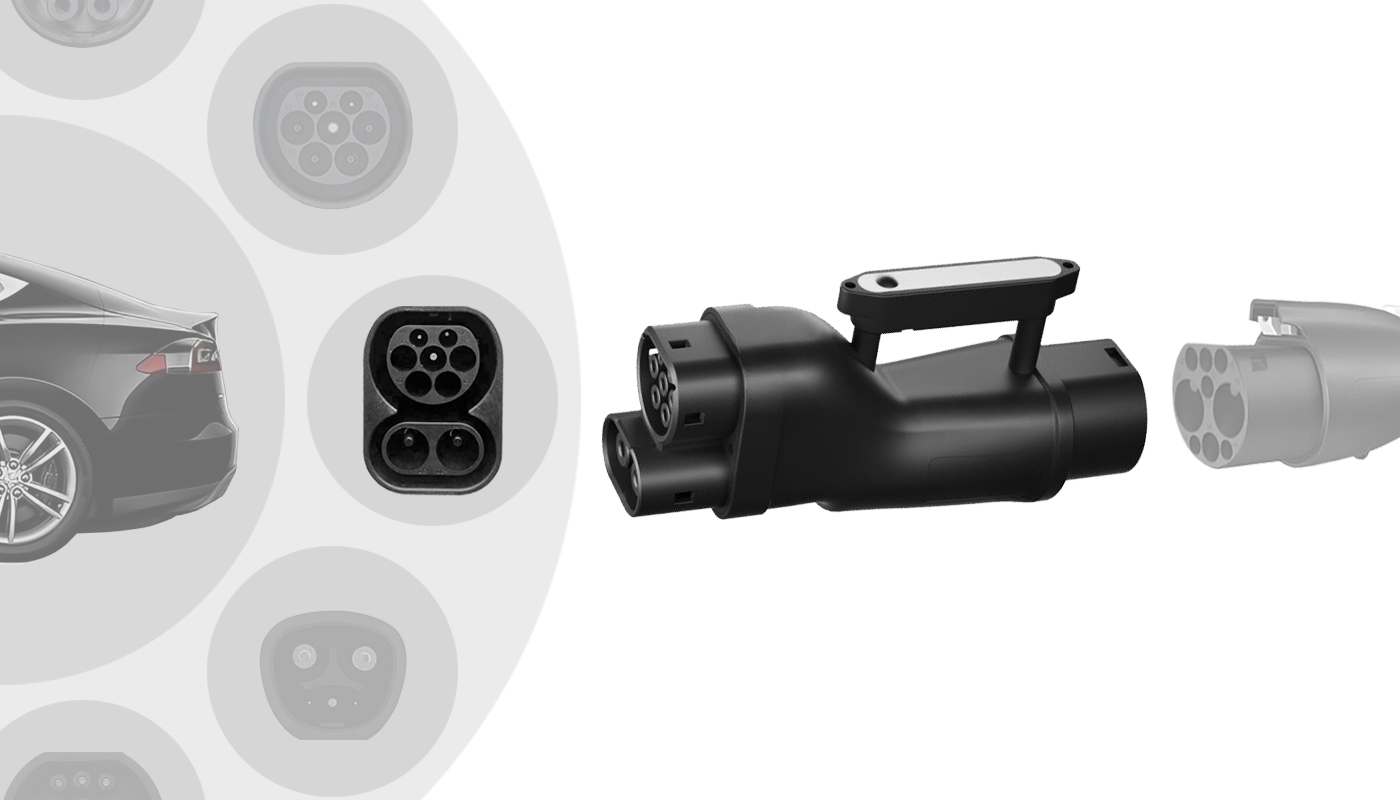

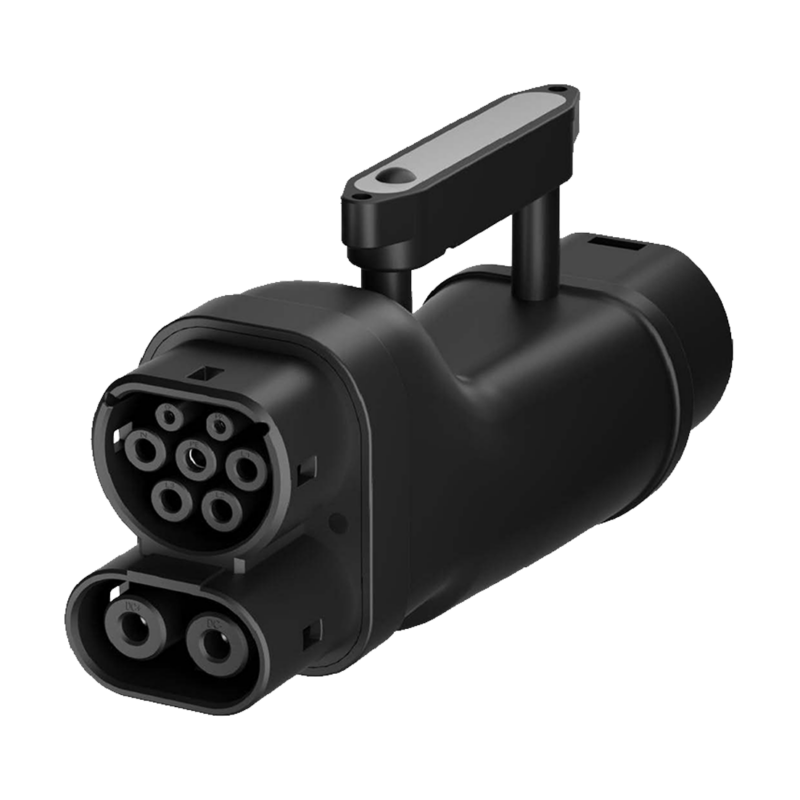

GBT to CCS2
DC EV Charging Adapter
Model NO.: HJ-EV-AGE-01DC
Rated voltage: DC150-1000V
Rated current: 200A max.
Rated power: 200KW max.
GBT to CCS2
DC EV Charging Adapter
Model NO.: HJ-EV-AGE-01DC
Rated voltage: DC150-1000V
Rated current: 200A max.
Rated power: 200KW max.
Specification
Rated voltage
DC150-1000V
Rated current
200A MAX.
Mechanical Life
No load plug in / pull out > 10,000 times
Working temperature
-30°C~+50°C
Insulation resistance
>1000mΩ
Flame retardant grade
UL94-V0
Protection rank
IP54
Contact resistance
<5mΩ
Other
Dual temperature cutoff switch stops charging when the adapter reaches 90ºC
ACCESSORIES
Charging Holder
Hanging the Cable and Holding the Charger
Storage Bag
Easy to carry
waterproof storage bag keep safety
Adapter
Connect different type charging
