TYPE1
AC EV Charging Cable
Model NO.: HJ-EV-CA01
Rated voltage: AC110-240V
Rated current: 16A / 32A / 40A / 48A
Rated power: 3.5KW / 7KW / 9KW / 11KW
TYPE1
AC EV Charging Cable
Model NO.: HJ-EV-CA01
Rated voltage: AC110-240V
Rated current: 16A / 32A / 40A / 48A
Rated power: 3.5KW / 7KW / 9KW / 11KW
Specification

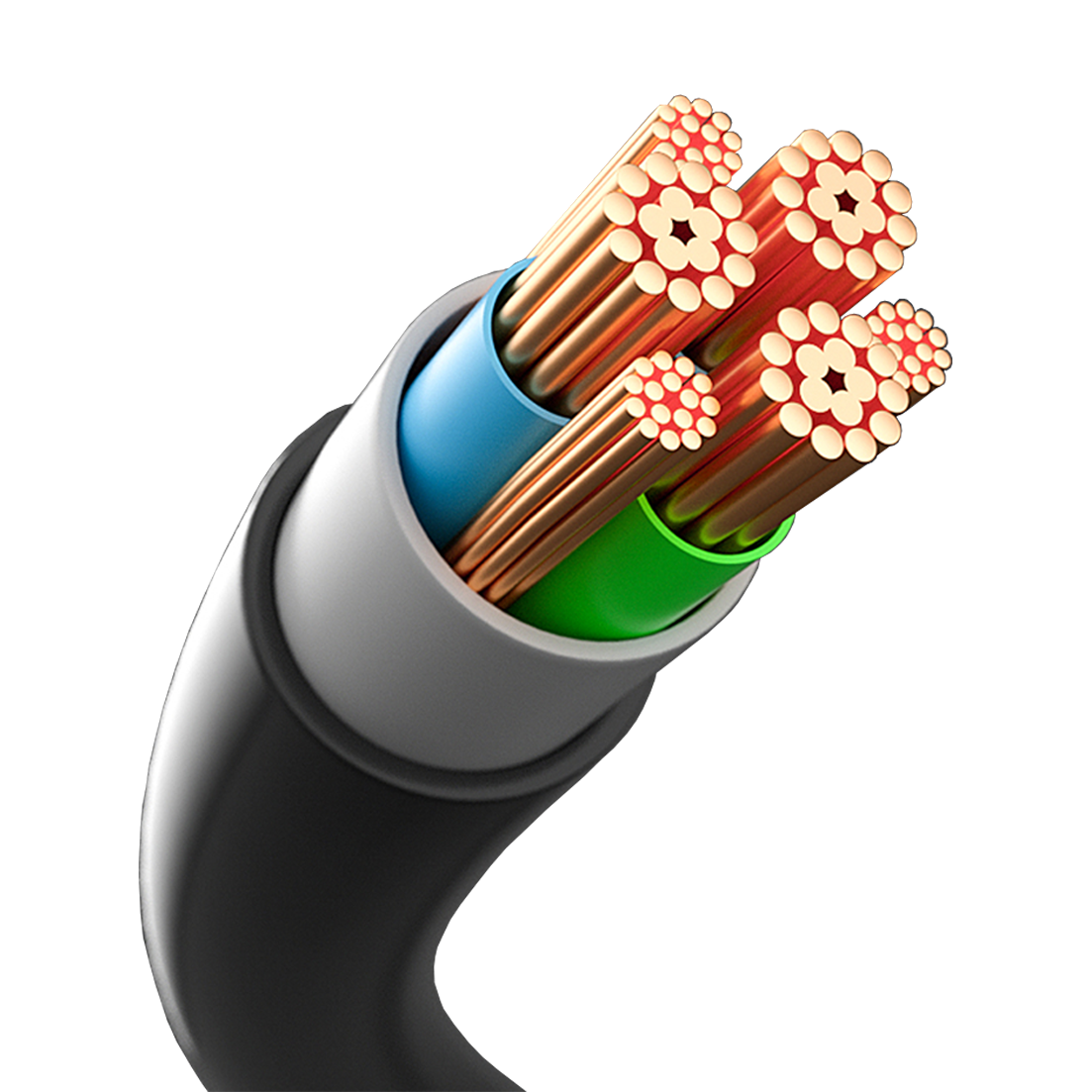

Cable specification
16A – 3.5KW – 2x13AWG+12AWG+18AWG
32A – 7KW – 3x10AWG+18AWG
40A – 9KW – 3x9AWG+18AWG
48A – 11KW – 2x8AWG+10AWG+16AWG
Mechanical life
No-load plug in / pull out > 10,000 times
Plug dimensions
L220 x W65 x H64 (mm)
Protection rank
IP55
Work temperature
-30°C~+50°C
Materials
EV charging cable TPE
Case material
Thermoplastic(flame retardant grade UL94-0)
Certification
CE / UKCA / RoHS
CUSTOMIZATION
Charging Cable Length
Length: 5m / 7m / 10m
Plug Customization
Every National Standard
Different Voltage and Current
Logo and Colors
Logo printing: Laser / Silk-screen
ACCESSORIES

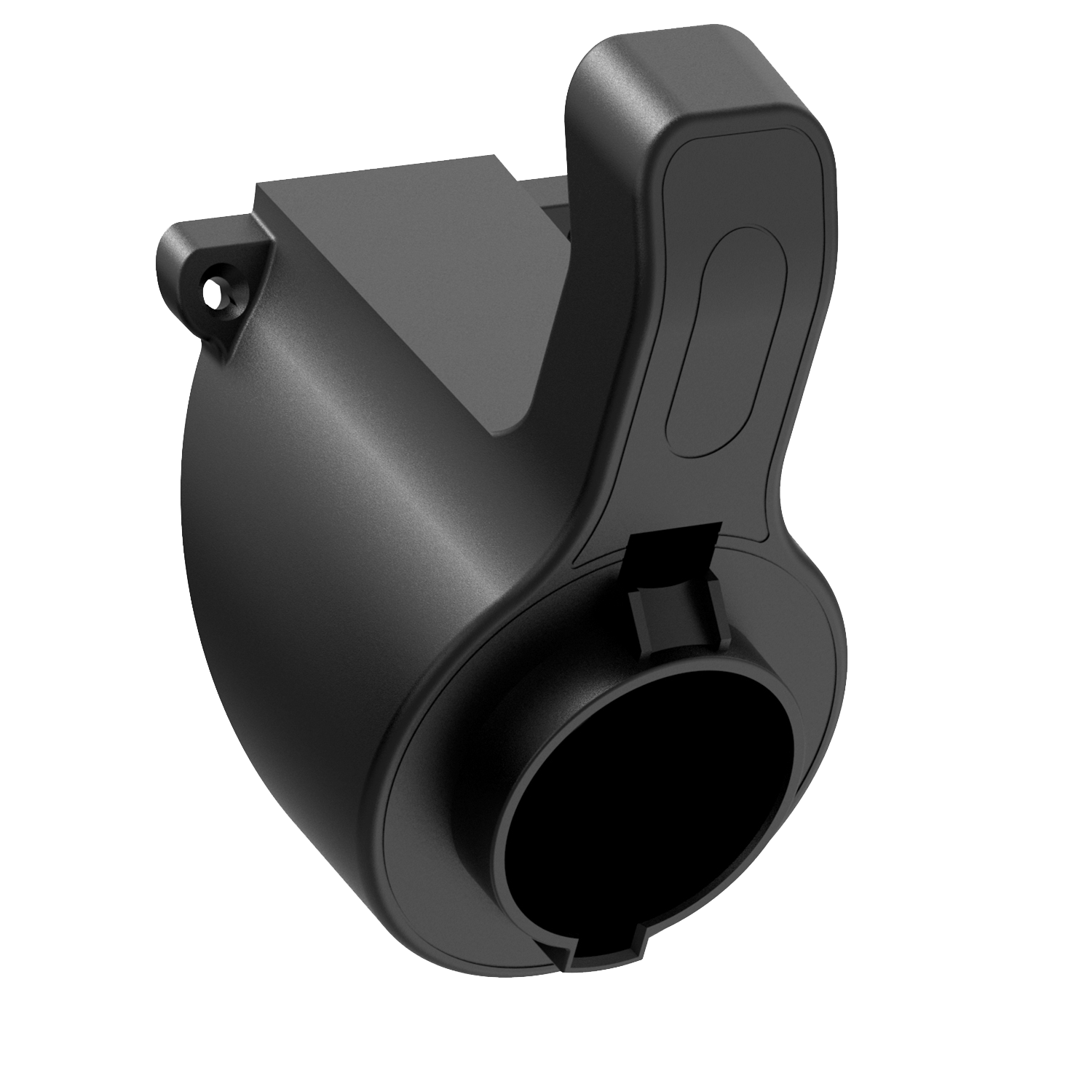

Charging Holder
Hanging the Cable and Holding the Charger

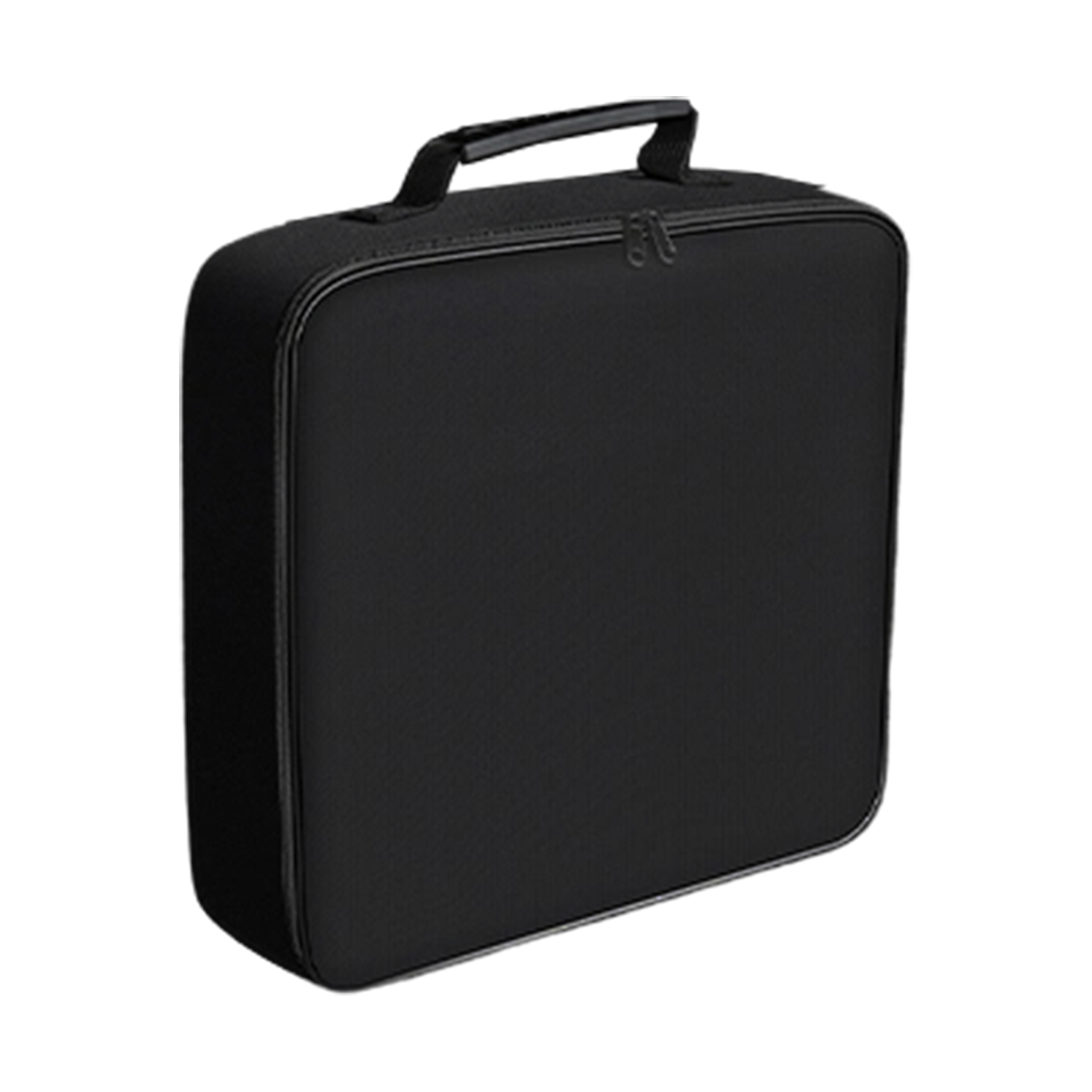

Storage Bag
Easy to carry
waterproof storage bag keep safety

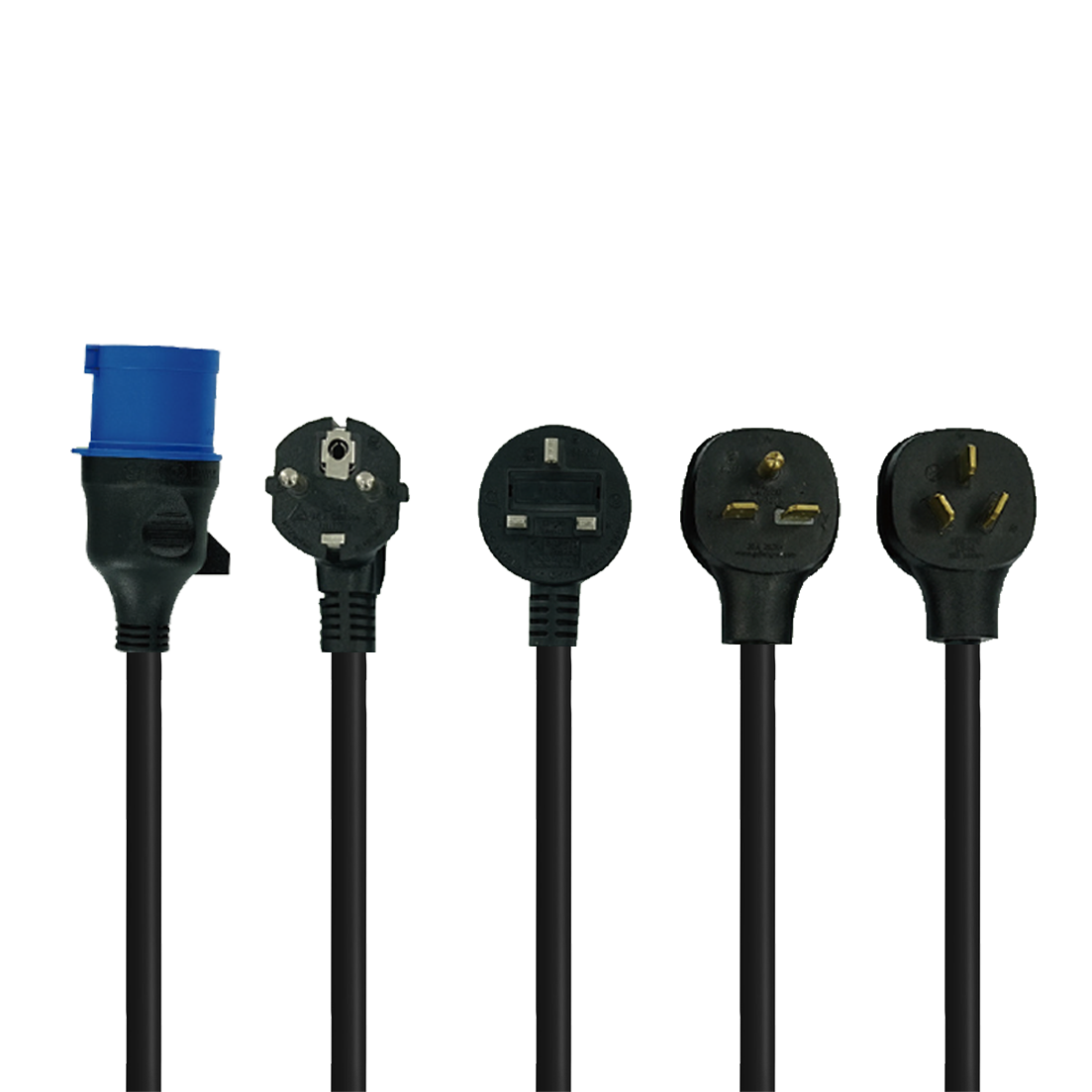

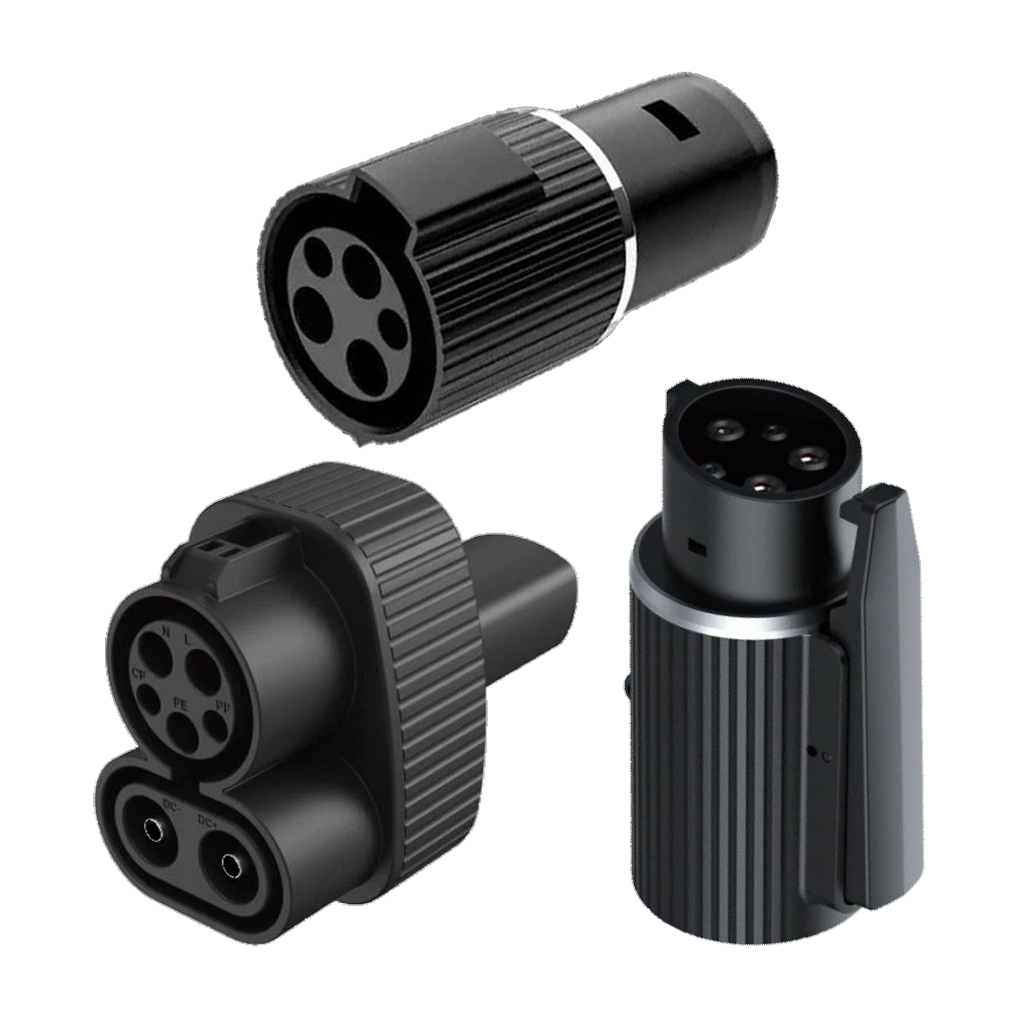

Adapter
Connect different type charging
GET A QUOTE
MORE OPTIONS

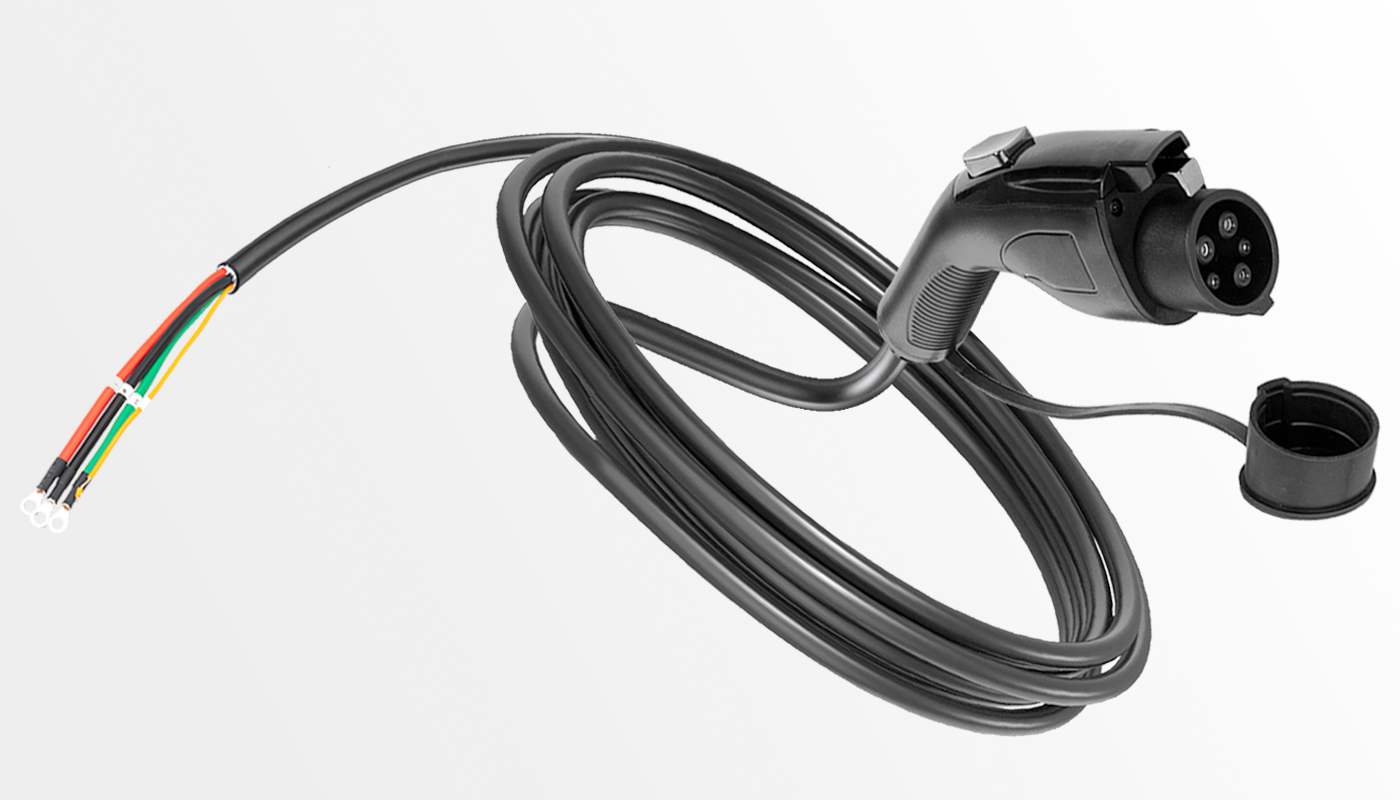

HJ-EV-CA01 | Type 1 (SAE J1772) AC Charging Cable with Open End
Industrial-grade assembly component for EVSE manufacturers. The HJ-EV-CA01 is a high-performance Type 1 cable designed for direct integration into AC wallboxes and charging pillars. With a pre-stripped tail end for easy termination and a rugged, silver-plated connector, it provides the reliable electrical link your charging station needs to perform in the field.
Key Features for Station Integration
1.Simplified Assembly
The cable features a professionally prepared open tail. Whether you need specific stripping lengths or pre-installed ring terminals for your contactors, we can customize the “business end” to speed up your production line.
2.Flexible TPU Jacket
We use TPU (Thermoplastic Polyurethane) instead of standard PVC. This ensures the cable doesn’t turn into a stiff, unmanageable “rod” in freezing weather (rated down to -30°C). It’s also highly resistant to oil and abrasion—essential for long-term outdoor reliability.
3.Thermal Management
The pins are made from high-grade copper alloy with a thick silver plating. This keeps contact resistance extremely low, meaning less heat buildup even during continuous high-power charging sessions.
4.IP66 Weather Sealing
Public charging stations face harsh conditions. Our connector head is rated at IP66 when mated, providing superior protection against heavy rain and dust compared to standard IP54 options.
Compliance & Certification
For B2B partners, regulatory compliance is non-negotiable. The HJ-EV-CA01 is fully tested and certified to meet international safety and environmental standards:
CE Marked: Fully compliant with European health, safety, and environmental protection standards.
FCC Certified: Meets the electromagnetic interference requirements for the North American market.
RoHS Compliant: Manufactured without hazardous substances, ensuring environmental safety and easier waste management for your end products.
Technical Specifications
Feature | Details |
Standard | SAE J1772 (Type 1) |
Termination | Open End / Tail (Customizable) |
Current Rating | 16A / 32A / 40A / 48A |
Voltage | 240V AC |
Jacket Material | High-Flex TPU |
Contact Plating | Thick Silver |
Ingress Protection | IP66 (Plug Head) |
Certifications | CE, FCC, RoHS |
Built for the Real World
- High Impact Resistance: The plug housing is made from premium thermoplastic that can survive accidental drops onto concrete or being stepped on without cracking.
- Mechanical Longevity: Designed for over 10,000 insertion cycles, ensuring the physical connection remains tight and secure over the entire lifespan of the charging station.
- Customization: We offer laser-etched branding and custom cable lengths (5m, 7m, or bespoke sizes) to help you deliver a finished product that fits your brand identity.
