HYBRID CHARGING SERIES
AC Wallbox EV Charger
Wallbox size: L335 x W250 x H93 (mm)
Protection rank: IP54
Leakage protection: Type B(RCD 30mA AC+6mA DC)
Materials: EV charging cable TPU(TYPE2, GBT), TPE(TYPE1)
HYBRID CHARGING SERIES
AC Wallbox EV Charger
Wallbox size: L335 x W250 x H93 (mm)
Protection rank: IP54
Leakage protection: Type B(RCD 30mA AC+6mA DC)
Materials: EV charging cable TPU(TYPE2, GBT), TPE(TYPE1)
Only Socket
TYPE 1
Model NO.: HJ-EV-WA-11
Rated voltage: AC110-240V
Rated current: 32A
Rated power: 7KW
TYPE 2
Model NO.: HJ-EV-WE-11
Rated voltage: AC220-480V
Rated current: 32A/1Phase, 16A/3Phase, 32A/3Phase
Rated power: 7KW / 11KW / 22KW
With Charging Cable
TYPE 1
Model NO.: HJ-EV-WA-11
Rated voltage: AC110-240V
Rated current: 32A
Rated power: 7KW
TYPE 2
Model NO.: HJ-EV-WE-11
Rated voltage: AC220-480V
Rated current: 32A/1Phase, 16A/3Phase, 32A/3Phase
Rated power: 7KW / 11KW / 22KW
GB / T
Model NO.: HJ-EV-WG-10
Rated voltage: AC230-400V
Rated current: 32A/1Phase, 16A/3Phase, 32A/3Phase
Rated power: 7KW / 11KW / 22KW
Specification
Maximum Charging Power
22KW
Dimension
L335 x W250 x H93 (mm)
Charge Connector
5m Cable (7m / 10M Optional)
Start Mode
Plug to Play (Standard)
RFID card / App(Optional)
Communication
Wi-Fi & Bluetooth & Ethernet & 4G (Optional)
Safety Protection
IP54
Leakage protection
Type B(RCD 30mA AC+6mA DC)
Certification
CE / UKCA / RoHS
CUSTOMIZATION
Charging Cable Length
Length: 5m / 7m / 10m
Plug Customization
Every National Standard
Different Voltage and Current
Logo Customization
Logo printing: Laser
ACCESSORIES
Charging Holder
Hanging the Cable and Holding the Charger

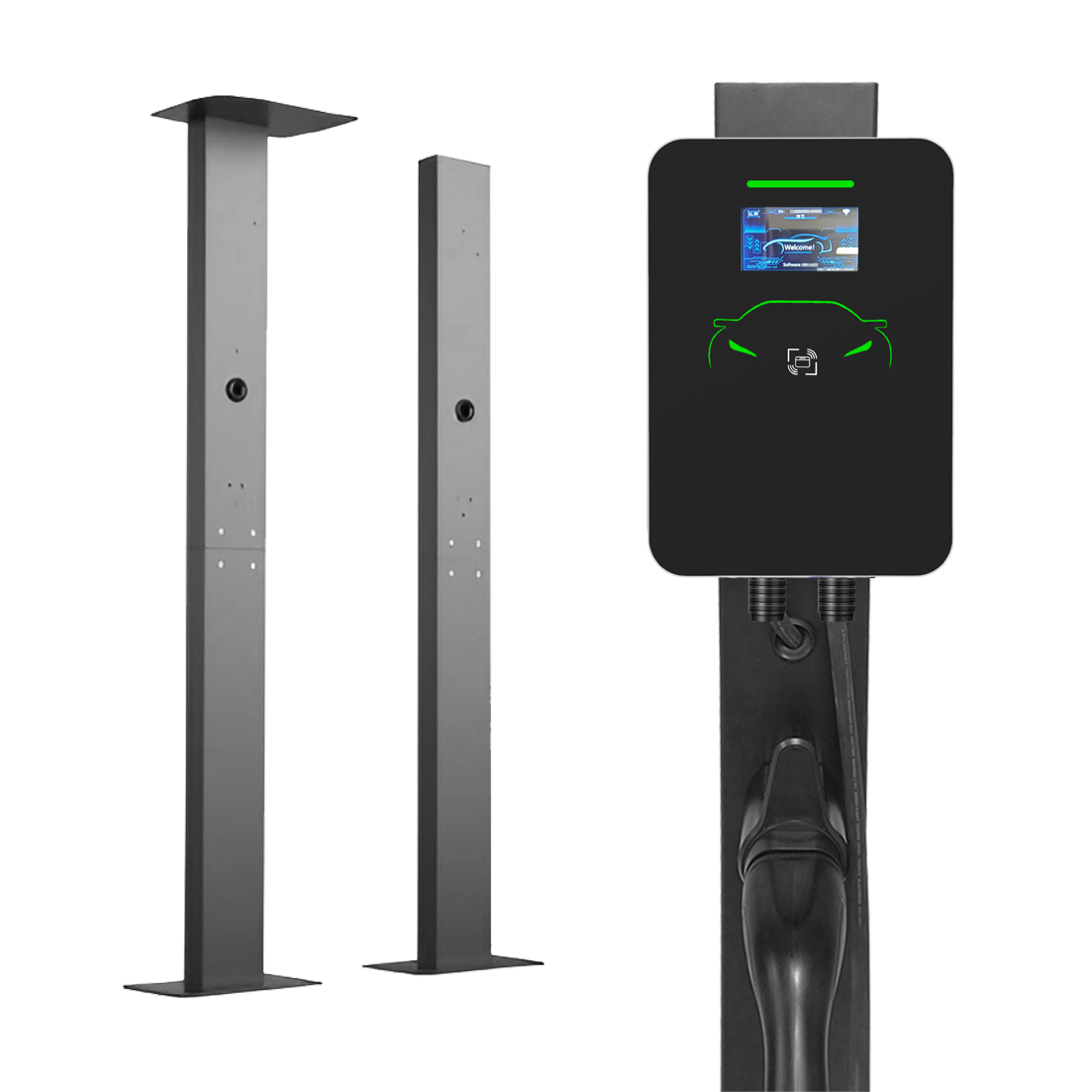

Charging Station Stand
Easy to install and reliable in quality
Extension Cord
Extend Your Charging Reach
GET A QUOTE
MORE OPTIONS
01
7 / 9 / 11 / 22 KW
02
7 / 11 / 22 KW
03
7 / 9 / 11 / 22 KW
04
7 / 9 / 11 / 22 KW
05
7 / 9 / 11 / 22 KW
08
7 / 9 / 11 / 22 KW
09
7 / 9 / 11 / 22 KW
10
7 / 10 / 11 / 22 KW
