DC 180-360KW

Triple-Charging

High Power Fast EV Charger

This charging station adopts a 3 guns design, with more modules and a wider range of application scenarios, which can meet more usage scenarios and is very suitable for areas with dense charging demand

Get a Quote

f07 dc ev charging station main product image 1

DC 180-360KW

Triple-Charging

High Power Fast EV Charger

This charging station adopts a 3 guns design, with more modules and a wider range of application scenarios, which can meet more usage scenarios and is very suitable for areas with dense charging demand

Get a Quote

Specification

Product Number

HJ-EV-F07

Input

400VAC / 480VAC (3P+N+PE) – 50/60Hz

Output Voltage

200 – 1000VDC

Output current

0 to 600A

Connectors

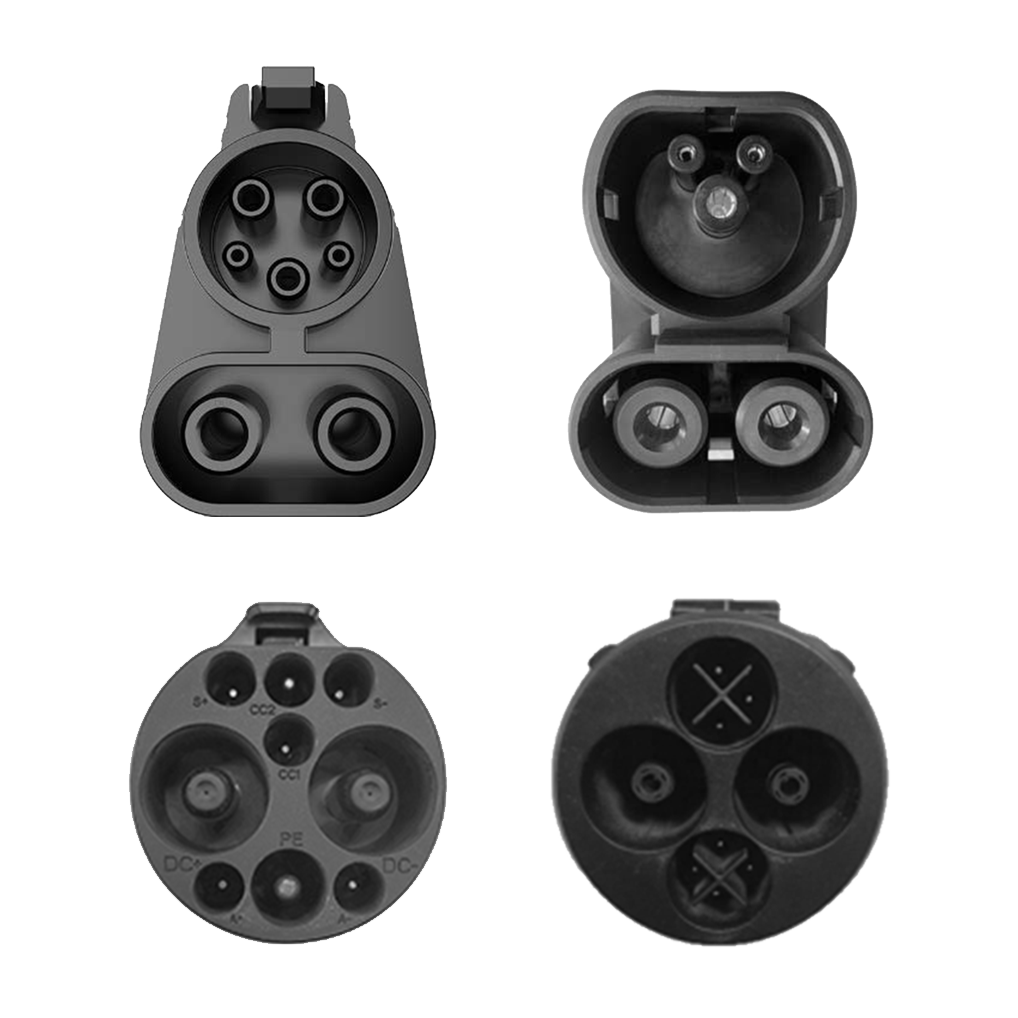

CCS1 / CCS2 / CHAdeMO / GBT

Single-gun charging mode

CCS1-200A / CCS2-200A / CHAdeMO-150A / GBT-250A

Efficiency

≥94% at nominal output power

Operating temperature

-30°C to 55°C

Altitude

< 2000m

Humidness

≤95%

Display

7’’ LCD with touch screen

Dimensions (L x D x H)

**9009001800mm**

Weight

340kg

Ingress Protection

IP54 / IK10

Power Electronics Cooling

Air Cooled

Charging Protocol Standards

Mode 4 IEC 61851, ISO 15118, DIN 70121Mode 4 CHAdeMO 2.0 Mode 4 GB/T 18487 2023, GB/T 20234 2023, GB/T 27930-2023

Cable length

5M

Start Mode

Plug to Play(Standard)

RFID card / App(Optional)

Communication

Wi-Fi & Bluetooth & Ethernet & 4G & OCPP 1.6 json control device(Optional)

Protection function

Over voltage / Lightning / Over current / Leakage / Waterproof protection, etc

CUSTOMIZATION & ACCESSORIES

Charging Cable Length

Length: 5m / 7m / 10m

Logo and Colors

Logo printing: Laser / Silk-screen

Charging Type

CCS1 / CCS2 / GBT / CHAdeMO

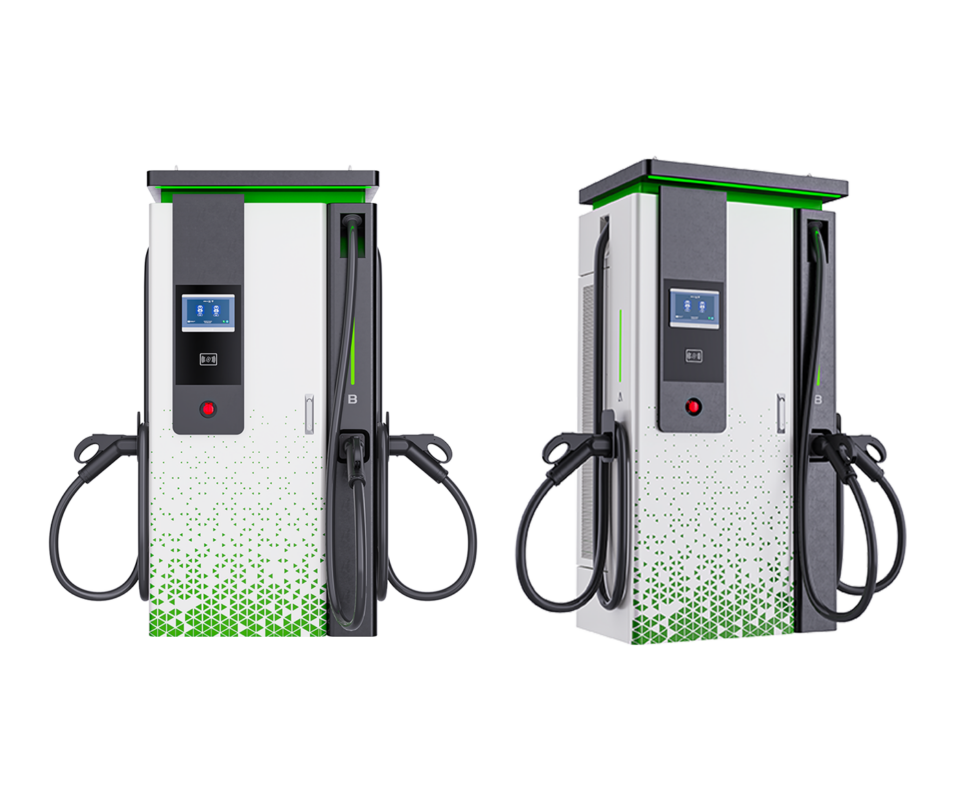

HJ-EV-F07 | 60kW - 240kW Triple-Gun DC Fast Charger

The HJ-EV-F07 is a high-efficiency charging hub designed to maximize site utility and vehicle compatibility. Featuring a unique Triple-Gun configuration (one on each side and one on the front), it allows for the simultaneous charging of three vehicles from a single footprint. With its modular power architecture, the F07 can be customized with various combinations of DC and AC outputs, making it the most flexible all-in-one solution for public charging networks and diverse fleet depots.

Detailed Technical Parameters

Category	Specification
Power Output	60kW – 240kW (Total System Power)
Connector Layout	Triple-Gun (Left / Right / Front)
DC Options	CCS1 / CCS2 / GB/T / CHAdeMO
AC Options	Up to 22kW (Type 1 / Type 2 / GB/T)
User Interface	7-inch High-Brightness Touchscreen
Lighting	Top & Front Door Integrated Atmosphere LEDs
Protection Rating	IP54 / IK10 (Steel Housing)
Network Interface	4G / Ethernet / Wi-Fi
Certifications	CE, UKCA, RoHS

Core Operational Features

1.Triple-Vehicle Charging

One station, three active sessions. The F07 is engineered to distribute power across three connectors simultaneously, significantly reducing the required installation space and infrastructure costs compared to installing multiple standalone units.

2.Flexible Output Mix

The station supports hybrid configurations to meet local market demands. You can choose a Full DC setup (3x DC guns) or an AC+DC Combo (e.g., 2x DC + 1x AC Type 2), covering everything from rapid highway top-ups to standard AC sessions.

3.Multi-Protocol Compatibility

To serve the widest range of EVs, the F07 supports all major global standards including CCS1, CCS2, CHAdeMO, and GB/T for DC, as well as Type 1, Type 2, and GB/T for AC.

4.Integrated Atmosphere Lighting

Built with premium aesthetics and safety in mind, the F07 features integrated LED lighting at the top and around the front door. This provides essential illumination for nighttime users and creates a high-tech, welcoming presence at your charging site.

5.Parallel Power Mode

For vehicles that require ultra-fast speeds, the system supports parallel charging, combining internal power modules to deliver maximum output to a single vehicle when needed.

Application & Customization (OEM/ODM)

Urban Space Optimization: Perfect for City Center Parking where space is limited. One F07 can effectively serve three adjacent parking stalls from a single installation point.
Multi-Standard Hubs: The ideal choice for Highway Service Areas and Airports where vehicles with different charging protocols must be accommodated simultaneously.
Custom Front Configuration: The front-facing port is modular. Depending on your project requirements, we can factory-configure it as either an AC connector for longer sessions or a DC gun for fast turnaround.
Brand Identity: We offer professional powder coating in custom colors and silkscreened logos. The integrated LED lighting can be adjusted to match your brand’s specific color profile.
Software Interoperability: Fully OCPP 1.6J compliant, ensuring smooth integration with global backend platforms for billing, load balancing, and remote management.

Field Projects

Public Transit Hub (EU): Deployed F07 units with a CCS2+CHAdeMO+AC Type 2 mix to serve a variety of taxi fleets and private EVs in a single high-traffic zone.
Shopping Mall Parking: Utilized the triple-gun setup and atmosphere lighting to provide a premium, versatile charging experience while saving valuable parking aisle space.

Technical Notes (For Professionals)

AC Output: Limited to a maximum of 22kW to align with standard 32A/Three-phase grid and OBC constraints.
Parallel Charging: Supports dual-module coupling for high-current output to a single vehicle when other ports are idle.

FAQs

Yes. The total system power is intelligently shared among the active connectors. The F07 dynamically allocates power modules to ensure each vehicle receives an optimized charge based on its current battery state.

It allows you to serve both high-speed transit users (DC) and long-dwell users (AC) at the same station, increasing the overall utilization and ROI of the site.

The lighting provides high-visibility status and illumination. It is designed to work automatically, enhancing the safety of the user and the equipment in low-light conditions.

SOLUTIONS

f06 dc ev charging station main product image 2

DEDICATED DECENTRALIZED CHARGING STATION

Use scenario: taxi, logistics car, commuter car, sanitation car and other stations
Product selection: integrated DC charging pile, 3-phase AC pile, single-phase AC pile and other charging products; Among them, fast charging is used for charging during the day and slow charging is used for charging at night.

PUBLIC CHARGING STATION / EXPRESSWAY CHARGING STATION

Use scenario: taxi, logistics car, commuter car, sanitation car and other stations
Product selection: integrated DC charging pile, 3-phase AC pile, single-phase AC pile and other charging products; Among them, fast charging is used for charging during the day and slow charging is used for charging at night.

ADVANTAGE

Strong compatibility, compatible with parking lot management system It is safe and reliable. The charging pile has multiple protection functions and anti – tipping protection. When the tilt reaches more than 30 degrees, the charging pile will automatically power off to ensure the safety and reliability of the charging process.

ADVANTAGE

1. Flexible adaptation. The charging station is equipped with various charging piles. Users can freely combine, flexibly choose fast charging and slow charging, and reasonably allocate time.
2. Strong compatibility, compatible with parking lot management system.
3. It is convenient to expand the capacity. The number of charging piles can be increased according to the demand to reduce the secondary investment.

get a quote
