DC 60-360KW

Dual-Charging

High Power Fast EV Charger

The cabinet meets the customized requirements of the State grid. The screen part adopts integrated design, and the depth of 600mm is more stable. It has 8 standard modules and can be expanded up to 320kW.

Get a Quote

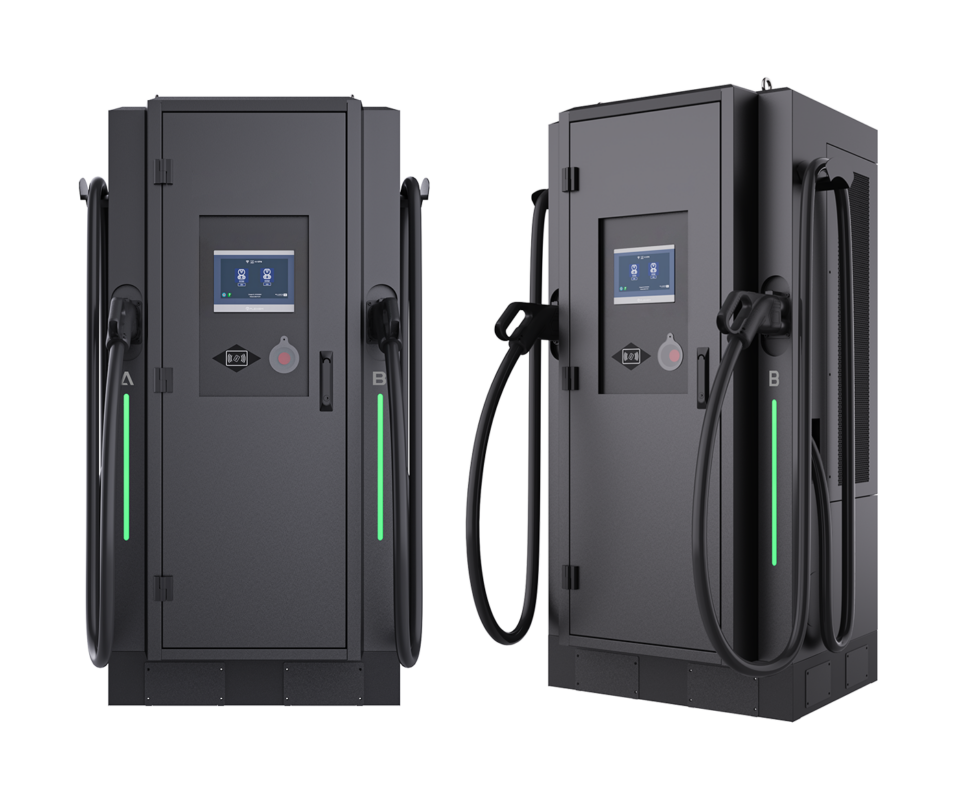

f06 dc ev charging station main product image 1

DC 60-360KW

Dual-Charging

High Power Fast EV Charger

The cabinet meets the customized requirements of the State grid. The screen part adopts integrated design, and the depth of 600mm is more stable. It has 8 standard modules and can be expanded up to 320kW.

Get a Quote

Specification

Product Number

HJ-EV-F06

Input

400VAC / 480VAC (3P+N+PE) – 50/60Hz

Output Voltage

200 – 1000VDC

Output current

0 to 600A

Connectors

CCS1 / CCS2 / CHAdeMO / GBT

Single-gun charging mode

CCS1-300A / CCS2-300A / CHAdeMO-150A / GBT-250A

Efficiency

≥94% at nominal output power

Operating temperature

-30°C to 55°C

Altitude

< 2000m

Humidness

≤95%

Display

7’’ LCD with touch screen

Dimensions (L x D x H)

**8006002000mm**

Weight

400kg

Ingress Protection

IP54 / IK10

Power Electronics Cooling

Air Cooled

Charging Protocol Standards

Mode 4 IEC 61851, ISO 15118, DIN 70121Mode 4 CHAdeMO 2.0 Mode 4 GB/T 18487 2023, GB/T 20234 2023, GB/T 27930-2023

Cable length

5M

Start Mode

Plug to Play(Standard)

RFID card / App(Optional)

Communication

Wi-Fi & Bluetooth & Ethernet & 4G & OCPP 1.6 json control device(Optional)

Protection function

Over voltage / Lightning / Over current / Leakage / Waterproof protection, etc

CUSTOMIZATION & ACCESSORIES

Charging Cable Length

Length: 5m / 7m / 10m

Logo and Colors

Logo printing: Laser / Silk-screen

Charging Type

CCS1 / CCS2 / GBT / CHAdeMO

HJ-EV-F06 | 60kW - 400kW Expandable DC Fast Charging Station

The HJ-EV-F06 is the most versatile and structurally robust pillar in our F-Series lineup. Designed for high-duty commercial environments, it features a modular architecture that grows with your business. Whether you need a standard 60kW unit for a local retail lot or a massive 400kW ultra-fast charger for a highway hub, the F06 provides a stabilized, high-performance platform. With four factory-standard colors and pre-drilled support for premium accessories, it is the ultimate “future-proof” charging solution.

Detailed Technical Parameters

Category	Specification
Power Output (Standard)	60kW / 120kW / 180kW / 240kW
Power Output (Large)	240kW / 300kW / 360kW / 400kW
Output Voltage	200V – 1000V DC
Connection Type	Dual-Connector (CCS1 / CCS2 / GB/T / CHAdeMO)
User Interface	7-inch Touchscreen + Vertical LED Status Indicators
Expansion Support	Pre-drilled for Cable Management Balancers
Durability & Finish	IP55 / IK10 (Advanced Powder Coating)
Network Interface	4G / Ethernet / Wi-Fi
Certifications	CE, UKCA, RoHS

Core Operational Features

1.Two Cabinet Sizes (Standard & Large)

Standard Chassis: Optimized for 60kW to 240kW configurations.
Extended Chassis: Designed for high-capacity 240kW to 400kW setups, providing superior cooling and internal space for high-power modules.

2.Accessory-Ready Architecture

The F06 features pre-drilled mounting holes on the top of the cabinet. This allows site operators to easily add our Mechanical Cable Management System (retractable balancers) at any time, even after the initial installation.

3.Four Signature Color Options

Unlike standard industrial chargers, the F06 comes in four distinct factory finishes to match your brand: Deep Black, Vibrant Red, Ocean Blue, and Classic White/Grey.

4.Intuitive User-Centric Interface

The 7-inch LCD touchscreen, RFID card sensor, and Emergency Stop are all centered on the front panel at an ergonomic height. High-visibility LED status bars are aligned vertically above each charging gun for instant status identification.

Application & Customization (OEM/ODM)

Heavy-Duty Commercial Sites: The rigid structure of the F06 makes it the first choice for Highway Service Stations, Fleet Depots, and Public Infrastructure where hardware stability is non-negotiable.
Modular Power Growth: Start with a 120kW setup and easily add power modules to reach 240kW as your local EV traffic increases—no need to replace the entire cabinet.
Premium Branding: Choose from our 4 signature colors or request a custom RAL match. The F06 offers a large, flat surface for custom silkscreened logos and localized operational graphics.
Full Protocol Support: Fully OCPP 1.6J compliant. It supports multi-protocol charging and integrates seamlessly with global charging management platforms for billing and remote diagnostics.

Success Stories

Regional Logistics Hub: Deployed the Deep Black F06 with 240kW output. The operator later added the cable management kit to help drivers handle the heavy cables more efficiently during high-frequency shifts.
Municipal Fast-Charge Network: A city project using the White/Grey F06, integrated with their local app via OCPP 1.6J to provide reliable 180kW charging for public transit and taxis.
Retail Destination: A shopping mall using the Vibrant Red units to match their brand colors, providing a high-visibility charging landmark for customers.

Technical Notes (For Professionals)

Scalability: Modular internal design allows for field-upgradable power increments.
Accessory Support: Integrated screw-holes for balancers ensure the IP55 rating is maintained after installation.

FAQs

Yes. The HJ-EV-F06 is designed with pre-drilled mounting points on the roof. You can purchase the cable balancer kit separately and install it whenever you are ready to upgrade the user experience.

The Large Cabinet features an enhanced cooling system and a wider internal frame to safely house the additional power modules and heavy-duty busbars required for 400kW output.

Yes. The vertical LED strips are high-lumen industrial grade, designed to be clearly visible even in direct sunlight, allowing drivers to see which gun is available from a distance.

SOLUTIONS

f06 dc ev charging station main product image 2

DEDICATED DECENTRALIZED CHARGING STATION

Use scenario: taxi, logistics car, commuter car, sanitation car and other stations
Product selection: integrated DC charging pile, 3-phase AC pile, single-phase AC pile and other charging products; Among them, fast charging is used for charging during the day and slow charging is used for charging at night.

PUBLIC CHARGING STATION / EXPRESSWAY CHARGING STATION

Use scenario: taxi, logistics car, commuter car, sanitation car and other stations
Product selection: integrated DC charging pile, 3-phase AC pile, single-phase AC pile and other charging products; Among them, fast charging is used for charging during the day and slow charging is used for charging at night.

ADVANTAGE

Strong compatibility, compatible with parking lot management system It is safe and reliable. The charging pile has multiple protection functions and anti – tipping protection. When the tilt reaches more than 30 degrees, the charging pile will automatically power off to ensure the safety and reliability of the charging process.

ADVANTAGE

1. Flexible adaptation. The charging station is equipped with various charging piles. Users can freely combine, flexibly choose fast charging and slow charging, and reasonably allocate time.
2. Strong compatibility, compatible with parking lot management system.
3. It is convenient to expand the capacity. The number of charging piles can be increased according to the demand to reduce the secondary investment.
