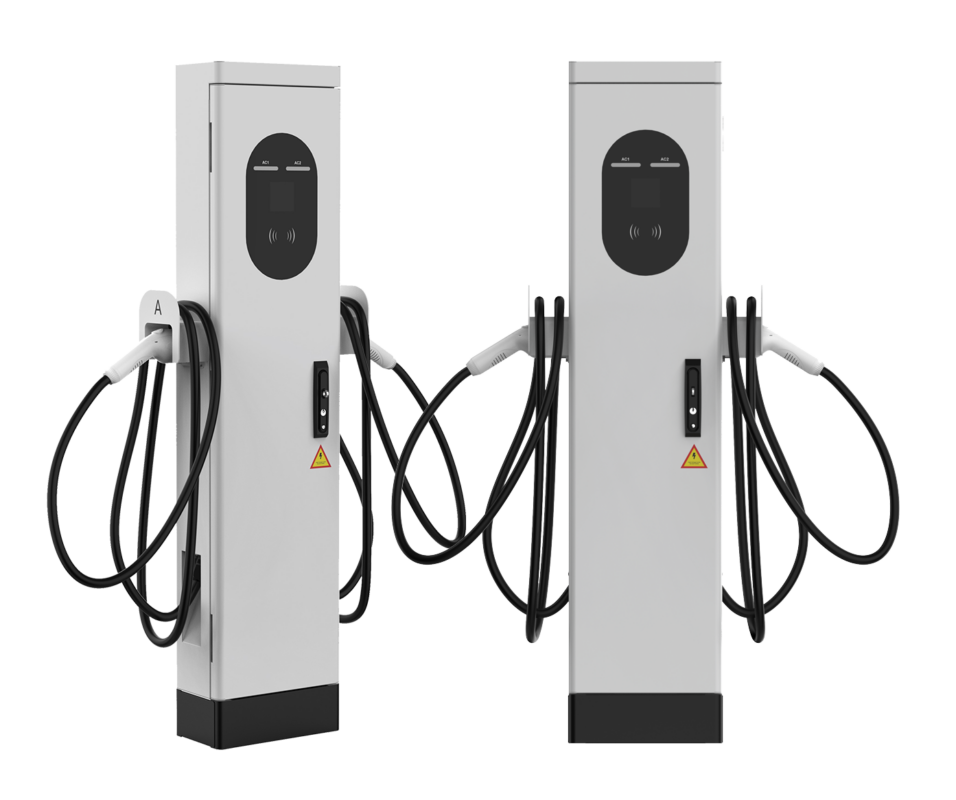

f02 ac ev charging station main product image 1

AC 7-22KW

Dual-Charging

Fast EV Charger

Self-developed brand-new appearance, soft lines can adapt to a variety of color schemes, to maximize the customer’s customized appearance needs

product feature icon 4
Get a Quote

Specification

Product Number

HJ-EV-F02

Input

7kw: 230VAC (1P+N+PE) – 50/60Hz

11/22kw: 400VAC (3P+N+PE) – 50/60Hz

Output Voltage

230-400VAC

Output current

32A*2 / 16A*2 /32A*2

Connectors

Type1 / Type2 / GBT

Single-gun charging mode

Type1-32A / 48A*2

Type2 / GBT-16A*2 /32A*2

Enclosure

Galvanized steel

Operating temperature

-25°C to 55°C

Altitude

< 2000m

Humidness

5%-95%

Display

4.3’’ LCD screen

Dimensions (L x D x H)

315*170*1400mm

Weight

44 / 46 / 50kg

Ingress Protection

IP54 / IK10

Power Electronics Cooling

Air Cooled

Charging Protocol Standards

EN/IEC 61851-1:2017, EN/IEC 61851-23:2014

Cable length

5M

Start Mode

Plug to Play(Standard)

RFID card / App(Optional)

Communication

Wi-Fi & Bluetooth & Ethernet & 4G & OCPP 1.6 json control device(Optional)

Protection function

Over voltage / Lightning / Over current / Leakage / Waterproof protection, etc

CUSTOMIZATION & ACCESSORIES

customizable charging cable length illustration

Charging Cable Length



Length: 5m / 7m / 10m



customizable logo printing for ac ev charging station f02 illustration

Logo and Colors



Logo printing: Laser / Silk-screen

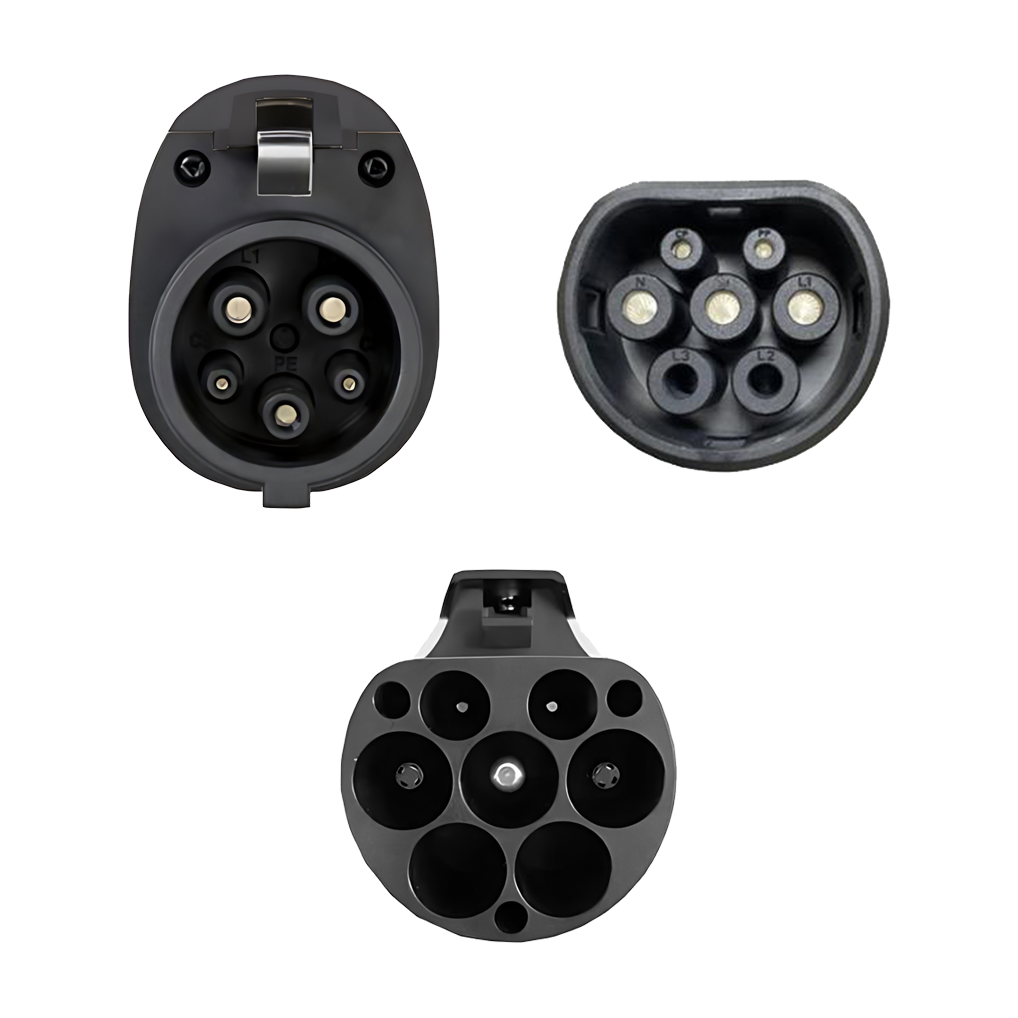

ev charging type type1 type2 gbt illustration

Charging Type



TYPE1 / TYPE2 / GBT



HJ-EV-F02 | 7kW - 22kW Dual-Connector AC EV Charging Station

The HJ-EV-F02 is a space-efficient, floor-mounted AC charging solution designed for high-density commercial deployments. While compact, it inherits the structural ruggedness and smart communication features of our DC fast-charging line. Supporting single or dual-connector 22kW outputs, the F02 is the optimal choice for commercial properties and fleet depots that require reliable, long-dwell charging infrastructure without the high CAPEX and electrical footprint of DC systems.

Detailed Technical Parameters

Category

Specification

Power Output

7kW (Single Phase) / 11kW / 22kW (Three Phase)

Output Type

Dual-Connector (Type 2 / Type 1 / GB/T)

Input Voltage

230V AC / 400V AC ± 15%

Charging Cable

5m (Standard) / Customizable Length

Network Interface

4G / Ethernet / Wi-Fi / RS485

Enclosure Rating

IP54 / IK10 (Steel Housing)

Protection

RCD Type A + DC 6mA (Optional) / Overcurrent / Ground Fault

Certifications

CE, UKCA, RoHS

Core Operational Features

1.Dual-Connector High Throughput

Unlike standard wallboxes, the F02 is a dedicated floor-stand unit that can charge two vehicles simultaneously at full 22kW speed (grid permitting). This doubles your site’s charging capacity while occupying the footprint of a single pedestal.

2.Low-Cost Installation & Scaling

The F02 is significantly lighter and simpler to wire than DC units. It utilizes existing AC power infrastructure, allowing for rapid roll-out across large parking lots with minimal civil engineering and electrical upgrades.

3.Stable OCPP 1.6J Connectivity

Built for the commercial operator. We’ve optimized the “handshake” process to ensure the F02 stays connected to your management platform (CMS). Remote start/stop, firmware updates, and automated billing synchronization work flawlessly without on-site intervention.

4.Industrial Build Quality

This isn’t a plastic home charger. The F02 features a reinforced steel cabinet with an IK10 impact rating and anti-corrosion coating. It provides the same level of vandalism protection and weather resistance as our high-power DC stations.

Contact Us

Application & Customization (OEM/ODM)

  • Direct Integration: Ideal for Commercial Office Parks and Fleet Depots where vehicles dwell for 4–8 hours. It allows for high-density charging without overwhelming the site’s transformer.
  • Factory-Level Branding: We don’t just stick on a logo. We offer custom powder coating (RAL colors) and high-wear silkscreen printing for your brand’s identity. The 7-inch HMI can also be pre-loaded with your localized UI and language.
  • Component-Level Customization: For tender-specific requirements, we can swap internal components—such as MID-certified meters for billing or specific RCBO/SPD brands—to match your local grid regulations or insurance standards.
  • Payment Hardware: The cabinet is designed with a pre-cut modular bay to integrate third-party POS payment terminals (like Nayax), enabling direct credit card access without a separate pedestal.

Field Projects & Deployment

  • UK Business District: 30 units of F02 dual-connector stations deployed in a multi-story carpark. Integrated with the building’s CMS to perform dynamic load shedding, preventing circuit trips during peak office hours.
  • EU Hospitality Group: Installed across multiple hotel sites to provide 22kW overnight charging. Handshaked with their existing management platform to allow guests to start sessions via RFID or a web-app.
  • Public Transit Depot: Specialized configurations for light-duty electric vans, featuring reinforced cable management and custom-length cables (7.5m) to fit the depot’s parking layout.

FAQs

Can this handle 22kW on both connectors at the same time?
Yes, provided your site has the necessary 400V/64A input. If the total power is limited, the station’s controller can be set to share the available current between the two connectors to avoid tripping the main breaker.
We use a specific local backend—will the OCPP handshake work?
We assist with the initial configuration. Our engineers will check the JSON logs from your CMS and adjust the station’s heartbeat and meter value intervals to ensure your billing system captures every kWh correctly.
What is the lead time for custom branding?
For custom RAL colors and silkscreening, it typically adds 1-2 weeks to the standard production cycle. We handle everything in-house to ensure the finish meets the same IP54/IK10 standards as the original unit.

SOLUTIONS

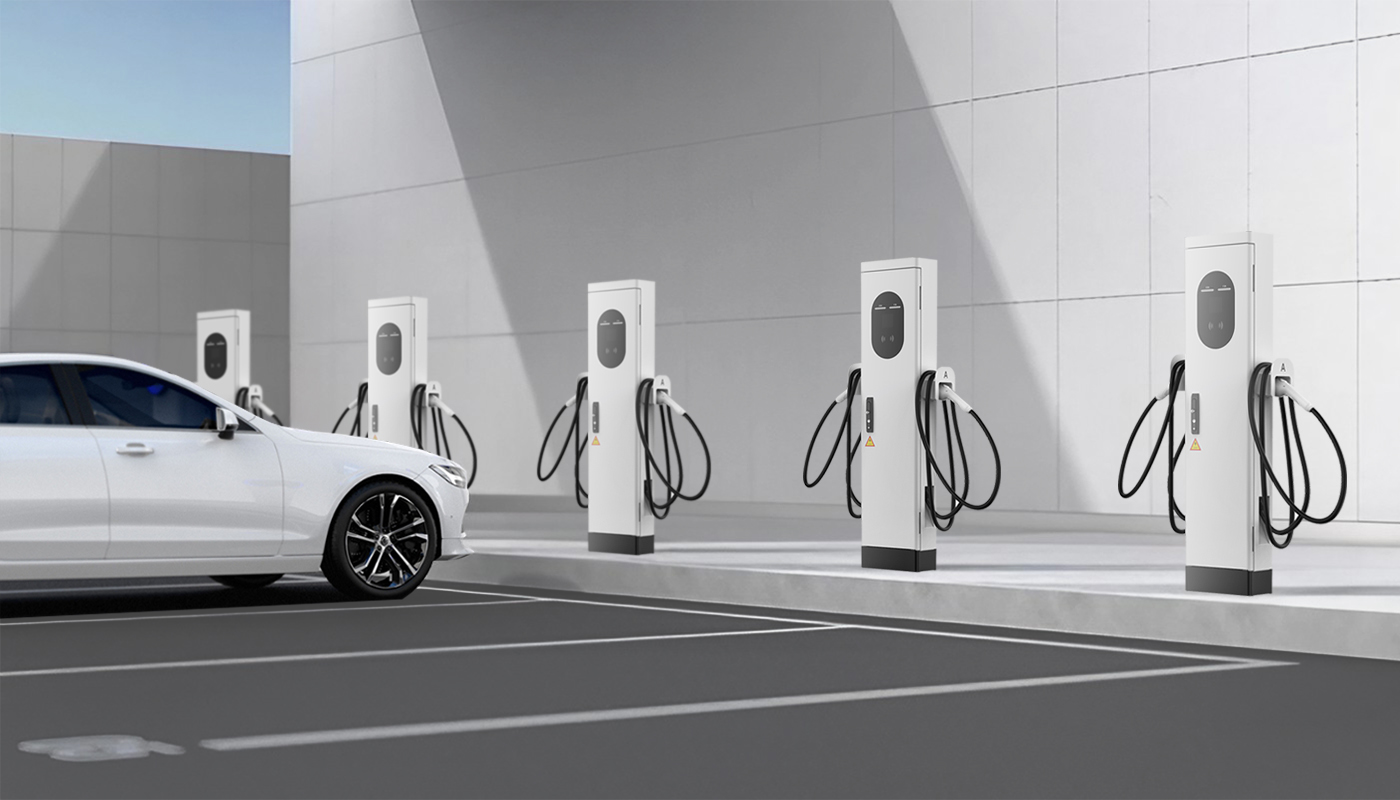

f02 ac ev charging station main product image 2

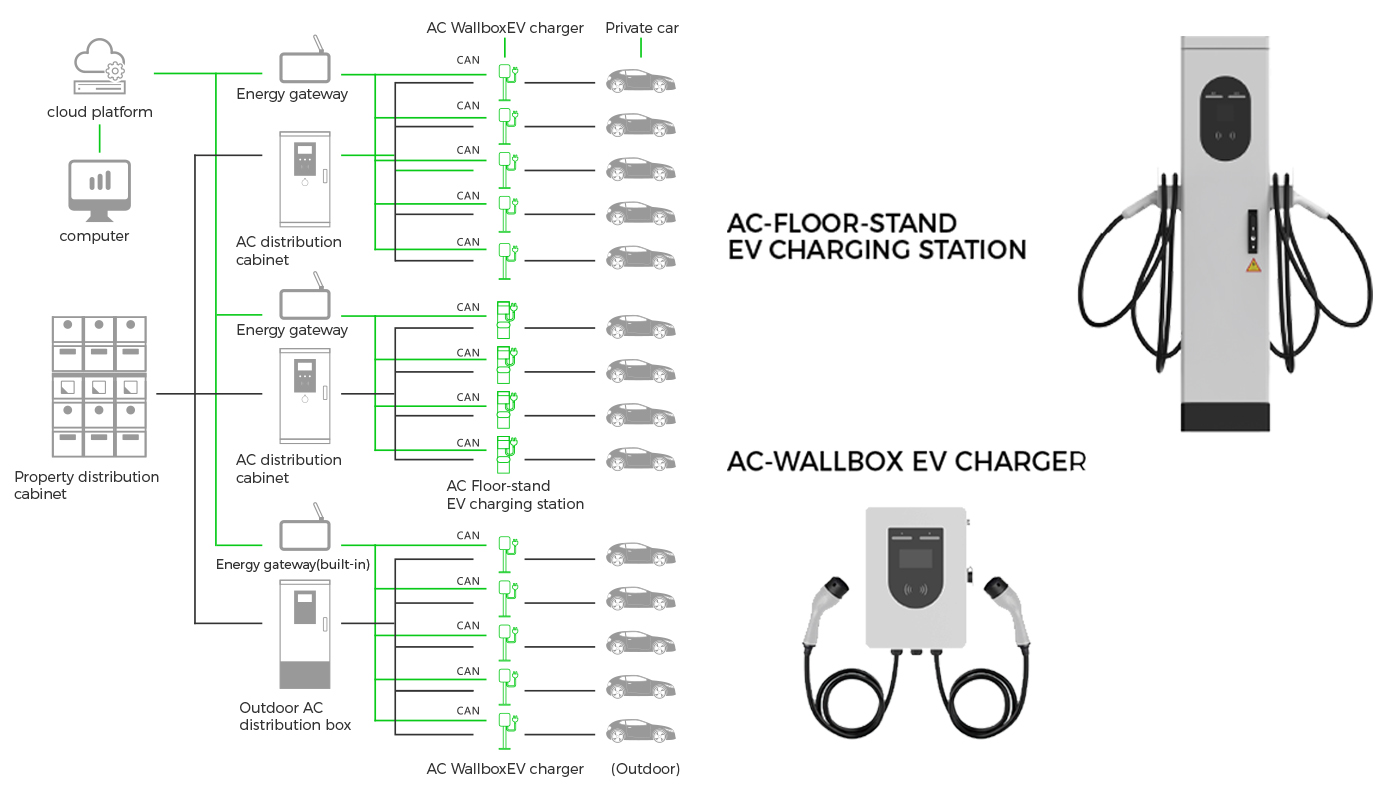

REAL ESTATE PROPERTY CHARGING

Application scenario: underground parking lot of residential and commercial buildings
Product selection: AC floor-stand EV charging station or wallbox EV charger

COMMUNITY FIXED POINT / SHARED CHARGING STATION

Application scenario: the area where the public parking lot of community vehicles needs to be charged.
Product selection: single-phase AC pile

ADVANTAGE

1. Save space and cost. Single-phase AC pile supports both wall-mounted and floor-stand installation methods.
2.Low operating cost: charging piles are managed in clusters through energy gateways. Each energy gateway can control 8-12 electric piles at the sam time, greatly reducing the operating cost.
3. Strong compatibility, compatible with parking lot management system

ADVANTAGE

1. Flexible adaptation. equipped with various charging piles. Users can freely combine, flexibly choose fast charging and slow charging, and reasonably allocate time.
2. Strong compatibility, compatible with parking lot management system
3. It is safe and reliable. The charging pile has a variety of protection functions and temperature detection functions to avoid over heating during charging. The charging pile has anti – tipping protection. When the tilt reaches more than 30 degrees, the charging pile will automatically power off for protection.
