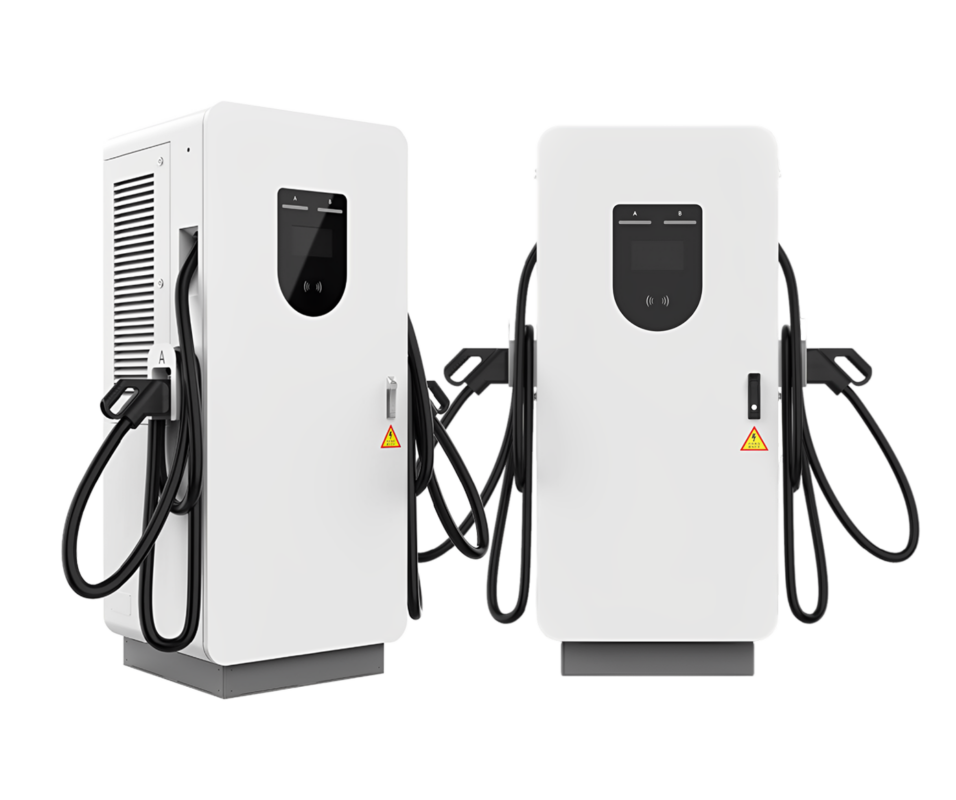

f01 dc ev charging station main product image 1

DC 60-360KW

Dual-Charging

High Power Fast EV Charger

Self-developed brand-new appearance, soft lines can adapt to a variety of color schemes, to maximize the customer’s customized appearance needs

product feature icon 4
Get a Quote

Specification

Product Number

HJ-EV-F01

Input

400VAC±20% (3P+N+PE) – 50/60Hz

Output Voltage

200 – 1000VDC

Output current

0 to 250A

Connectors

CCS1 / CCS2 / GBT

Single-gun charging mode

CCS1-200A / CCS2-200A / GBT-250A

Efficiency

≥95% at nominal output power

Operating temperature

-30°C to 55°C

Altitude

< 2000m

Humidness

5%-95%

Display

7’’ LCD with touch screen

Dimensions (L x D x H)

700*400*1600mm / 750*600*1700mm

Weight

200 / 260 / 300kg

Ingress Protection

IP54 / IK10

Power Electronics Cooling

Air Cooled

Charging Protocol Standards

EN/IEC 61851-1:2017, EN/IEC 61851-23:2014

Cable length

5M

Start Mode

Plug to Play(Standard)

RFID card / App(Optional)

Communication

Wi-Fi & Bluetooth & Ethernet & 4G & OCPP 1.6 json control device(Optional)

Protection function

Over voltage / Lightning / Over current / Leakage / Waterproof protection, etc

CUSTOMIZATION & ACCESSORIES

customizable charging cable length illustration

Charging Cable Length



Length: 5m / 7m / 10m



customizable logo printing for dc ev charging station f01 illustration

Logo and Colors



Logo printing: Laser / Silk-screen

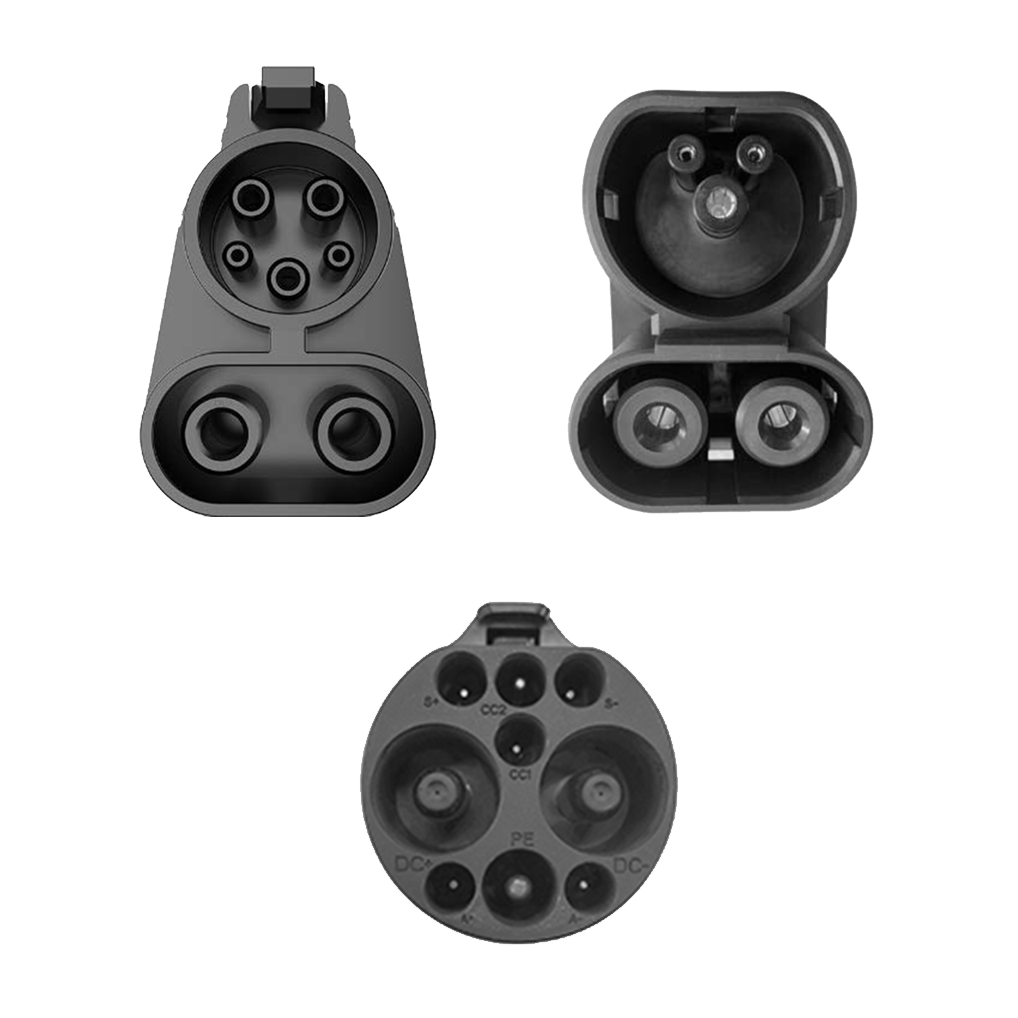

ev charging type ccs1 ccs2 gbt illustration

Charging Type



CCS1 / CCS2 / GBT



HJ-EV-F01 | 60kW - 360kW Commercial DC Fast Charger

The HJ-EV-F01 is a modular DC charging system built for heavy-duty commercial use, including public fast-charging hubs, transit depots, and large-scale retail parking. Available in a power range from 60kW to 360kW, it provides a scalable hardware platform that grows alongside your site’s traffic. Our focus is on power density, stable OCPP handshaking, and high-uptime performance in unshaded outdoor environments.

Detailed Technical Parameters

Category

Specification

Power Output Range

60kW / 120kW / 180kW / 240kW / 300kW / 360kW

Output Voltage

200V – 1000V DC

Connector Standards

Dual Gun: CCS1 / CCS2 / GB/T (Configurable)

Peak Efficiency

≥ 96%

Network Interface

4G / Ethernet / Wi-Fi

HMI

10.1-inch Touchscreen Interface

Operating Temp.

-30°C to +50°C (Derating starts at <-25°C or >+45°C)

Enclosure Rating

IP54 / IK10

Certifications

CE, UKCA, RoHS

Application & Customization (OEM/ODM)

  • Deployment Scenarios: Ideal for CPOs (Charge Point Operators), logistics hubs requiring fleet-specific scheduling, and commercial properties looking for reliable, white-label fast chargers.
  • Firmware & API Support: We offer more than just standard protocols. Our engineers provide deep-level firmware support to integrate custom billing logic or proprietary fleet management APIs directly into the station.
  • Hardware Branding: The F01 supports full-cabinet vinyl wrapping and a localized UI/UX on the touchscreen. We can also customize internal switchgear components (e.g., specific breaker brands) to comply with local utility tenders.

Core Operational Features

1.Modular Capacity Expansion

The internal architecture uses hot-swappable power modules (20kW/30kW). You can deploy at 120kW today and add modules to reach 360kW as your budget and site demand increase—minimizing initial CAPEX.

2.Stable OCPP 1.6J Integration

We focus on the “handshake.” The F01 is built for zero-day compatibility with major third-party backend platforms, ensuring that heartbeats, remote start/stop, and billing data stay synchronized without constant manual resets.

3.Dynamic Load Management

The dual-gun system intelligently splits power based on the vehicle’s real-time BMS request. This prevents power “stranding” and ensures that if one car is nearly full, the other can utilize the remaining capacity for a faster turnover.

4.Field Durability

Encased in a reinforced steel housing with anti-corrosion coating. The cooling system uses independent air ducts to isolate sensitive electronics from dust and moisture, ensuring the charger stays online during peak summer heat.

Contact Us

Success Stories

  • EU Transit Hubs: 180kW units deployed across highway rest areas, fully integrated with roaming platforms for cross-border payment.
  • Fleet Electrification: 360kW dual-gun setups for electric bus depots in South America, utilizing custom scheduling to charge overnight at lower rates.
  • Middle East Commercial Sites: 120kW units equipped with sand-proof filtration and high-temp cooling for stable 24/7 operation.

FAQs

How do you handle the initial connection to our management platform?
We provide active technical support during the commissioning phase. Our team works with your CMS provider to verify the OCPP 1.6J data packets, ensuring that billing and remote diagnostics work correctly from the first charge.
Is it possible to integrate a local payment terminal?
Yes. The cabinet includes a dedicated bay for standard POS terminals (like Nayax). We can install and pre-wire these at the factory so your site is ready for credit card payments immediately upon installation.
What happens if one power module fails?
The F01 continues to operate at a reduced capacity. Because the modules are hot-swappable, your maintenance team can replace the faulty unit without taking the entire station offline, maintaining service continuity.

SOLUTIONS

f01 dc ev charging station main product image 2

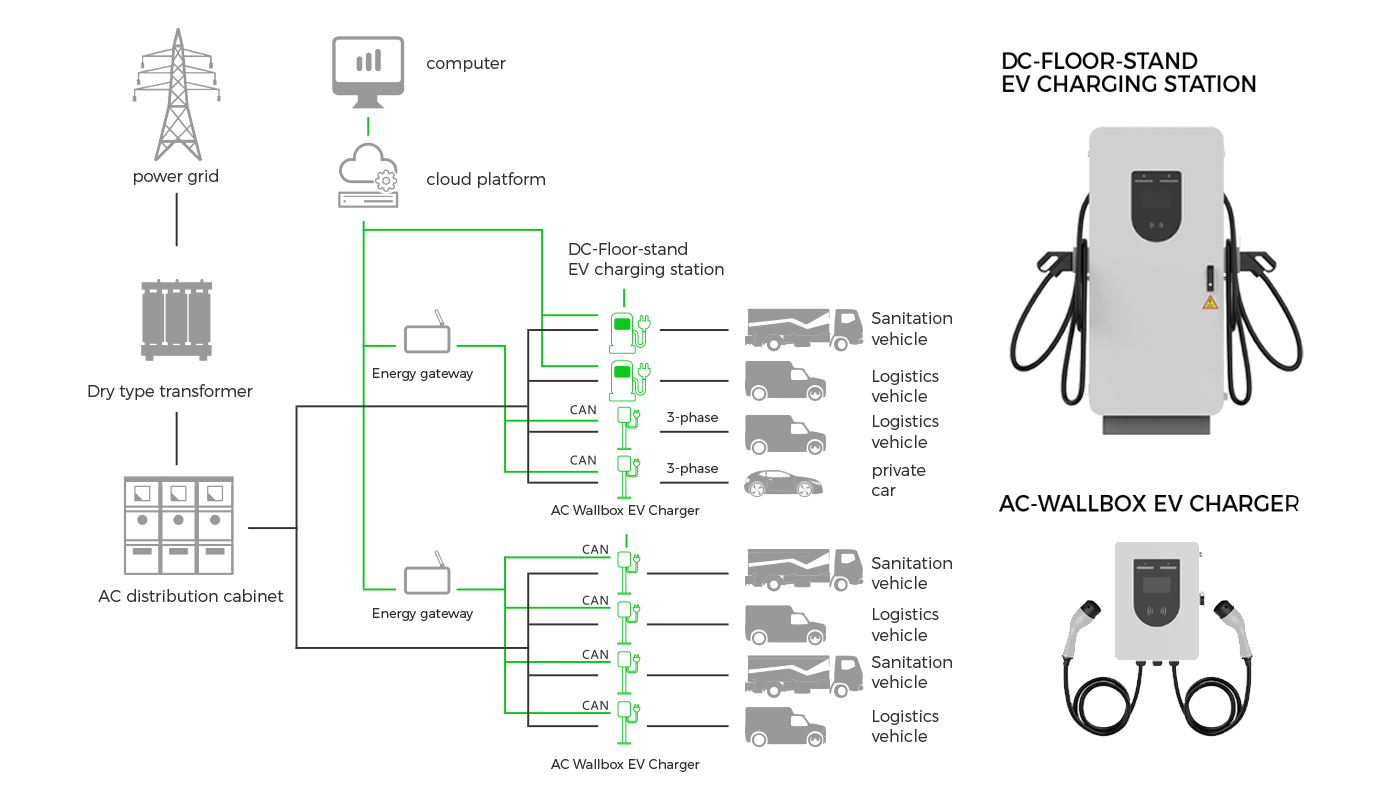

DEDICATED DECENTRALIZED CHARGING STATION

Use scenario: taxi, logistics car, commuter car, sanitation car and other stations
Product selection: integrated DC charging pile, 3-phase AC pile, single-phase AC pile and other charging products; Among them, fast charging is used for charging during the day and slow charging is used for charging at night.

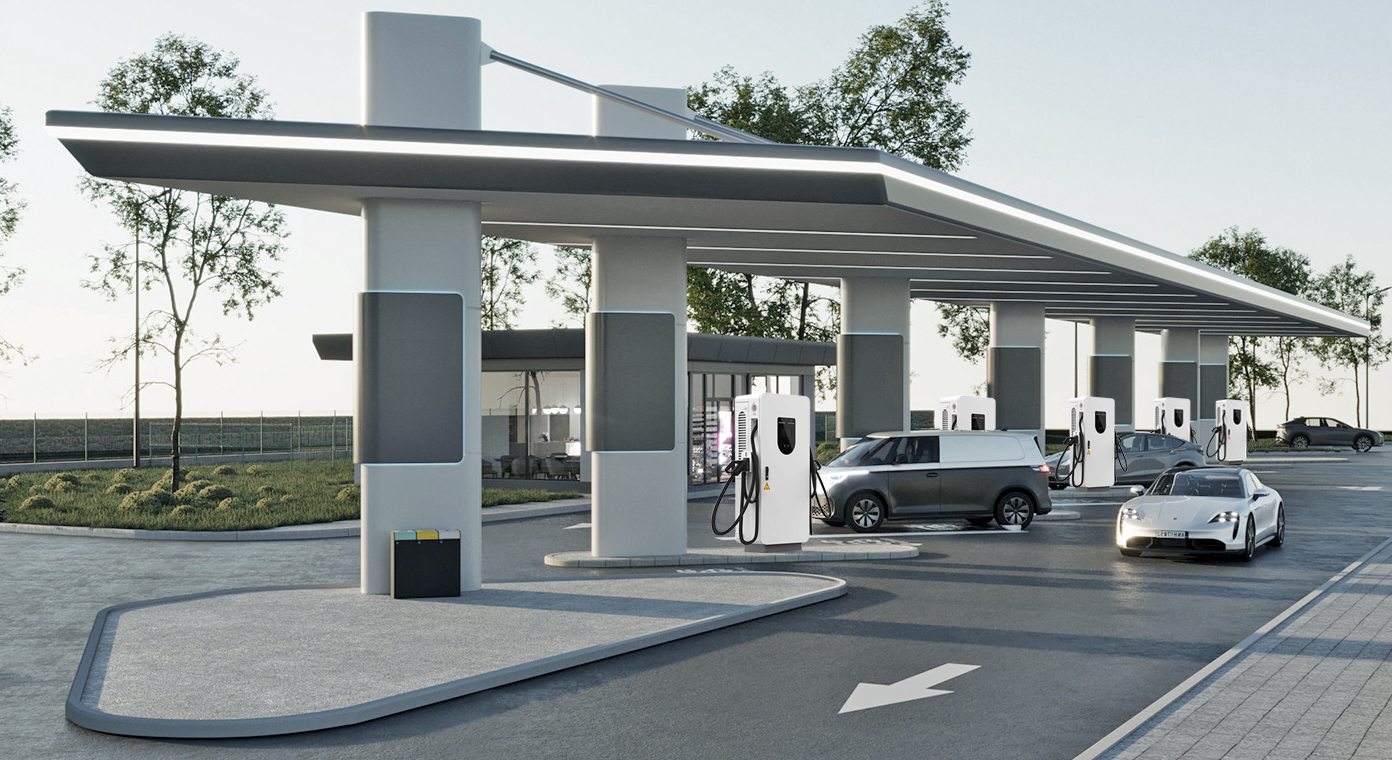

PUBLIC CHARGING STATION / EXPRESSWAY CHARGING STATION

Use scenario: taxi, logistics car, commuter car, sanitation car and other stations
Product selection: integrated DC charging pile, 3-phase AC pile, single-phase AC pile and other charging products; Among them, fast charging is used for charging during the day and slow charging is used for charging at night.

ADVANTAGE

Strong compatibility, compatible with parking lot management system It is safe and reliable. The charging pile has multiple protection functions and anti – tipping protection. When the tilt reaches more than 30 degrees, the charging pile will automatically power off to ensure the safety and reliability of the charging process.

ADVANTAGE

1. Flexible adaptation. The charging station is equipped with various charging piles. Users can freely combine, flexibly choose fast charging and slow charging, and reasonably allocate time.
2. Strong compatibility, compatible with parking lot management system.
3. It is convenient to expand the capacity. The number of charging piles can be  increased according to the demand to reduce the secondary investment.
