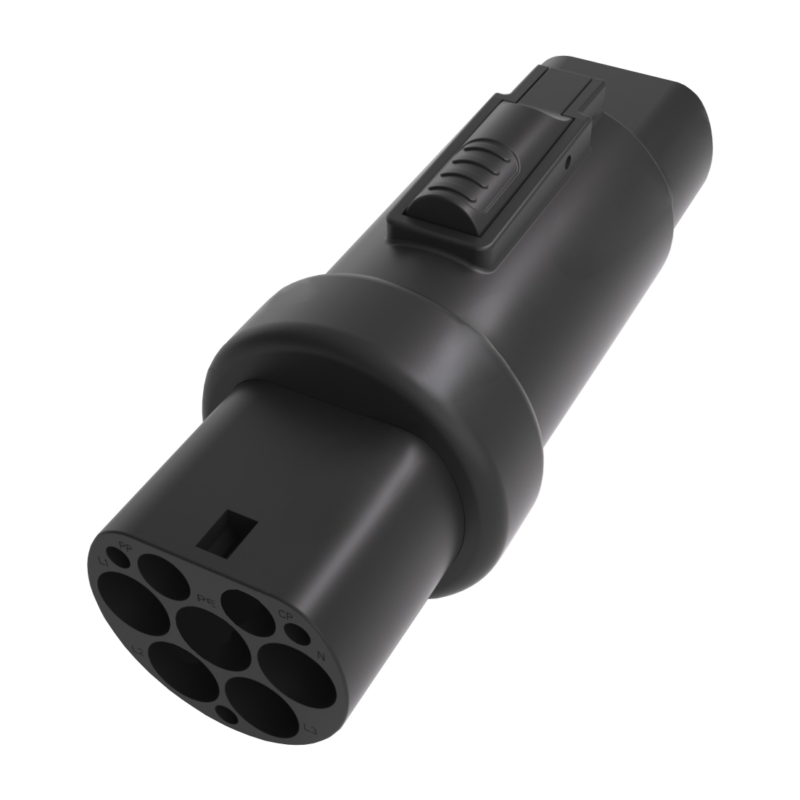

TYPE2 to GBT
AC EV Charging Adapter
Model NO.: HJ-EV-AEG-01
Rated voltage: AC240-415V
Rated current: 32A max.
Rated power: 8-13KW
TYPE2 to GBT
AC EV Charging Adapter
Model NO.: HJ-EV-AEG-01
Rated voltage: AC240-415V
Rated current: 32A max.
Rated power: 8-13KW
Specification
Rated voltage
AC240-415V
Rated current
32A MAX.
Mechanical Life
No load plug in / pull out > 10,000 times
Working temperature
-30°C~+50°C
Insulation resistance
>1000mΩ
Flame retardant grade
UL94-V0
Protection rank
IP54
Contact resistance
<5mΩ
Other
Dual temperature cutoff switch stops charging when the adapter reaches 90ºC
ACCESSORIES
Charging Holder
Hanging the Cable and Holding the Charger
Storage Bag
Easy to carry
waterproof storage bag keep safety

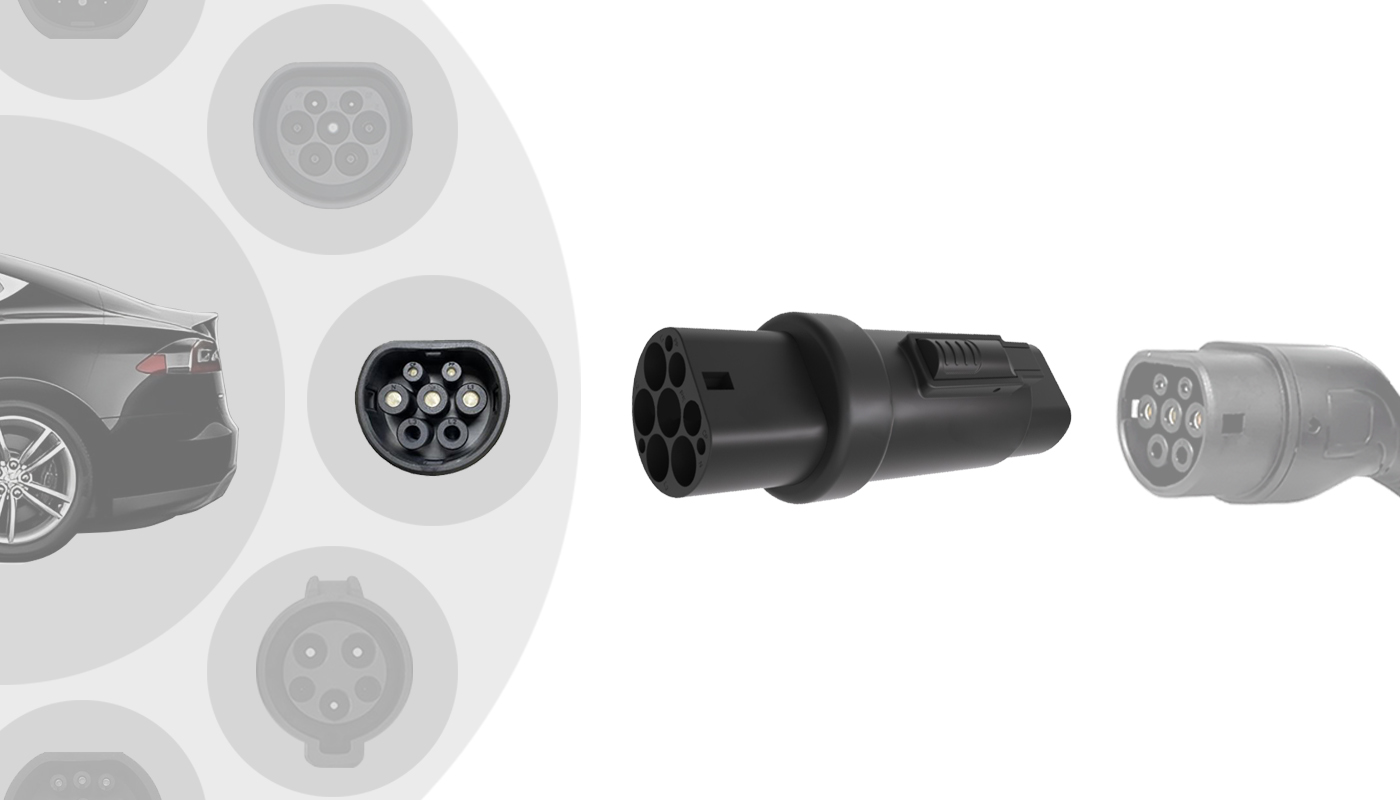

Adapter
Connect different type charging
